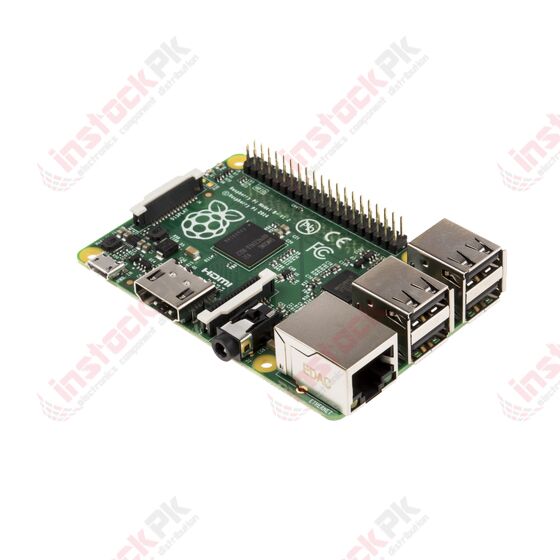

Raspberry Pi B+ Broadcom BCM2835 512MB RAM

The Raspberry Pi Model B+ incorporates a number of enhancements and new features. Improved power consumption, increased connectivity and greater IO are among the improvements to this powerful, small and lightweight ARM based computer.

SPECIFICATIONS:

1. Chip: Broadcom BCM2835 SoC
2. Core architecture: ARM11
3. CPU: 700 MHz Low Power ARM1176JZFS Applications Processor
4. GPU: Dual Core VideoCore IV® Multimedia Co-Processor
5. Provides Open GL ES 2.0, hardware-accelerated OpenVG, and
6. 1080p30 H.264 high-profile decode
7. Capable of 1Gpixel/s, 1.5Gtexel/s or 24GFLOPs with texture filtering and DMA infrastructure
8. Memory: 512MB SDRAM
9. Operating System: Boots from Micro SD card, running a version of the Linux operating system
10. Dimensions: 85 x 56 x 17 mm
11. Power: Micro USB socket 5 V, 2 A

CONNECTORS:

1. Ethernet: 10/100 BaseT Ethernet socket
2. Video Output: HDMI (rev 1.3 & 1.4)
3. Composite RCA (PAL and NTSC)
4. Audio Output: 3.5 mm jack, HDMI
5. USB: 4 x USB 2.0 Connector
6. GPIO Connector: 40-pin 2.54 mm (100 mil) expansion header: 2x20 strip
7. Providing 27 GPIO pins as well as +3.3 V, +5 V and GND supply lines
8. Camera Connector: 15-pin MIPI Camera Serial Interface (CSI-2)
9. JTAG: Not populated
10. Display Connector: Display Serial Interface (DSI) 15 way flat flex cable connector with two data lanes and a clock lane Memory Card Slot: SDIO

PACKAGE INCLUDES:

1. 1 X Raspberry Pi B+ Broadcom BCM2835  512MB RAM
