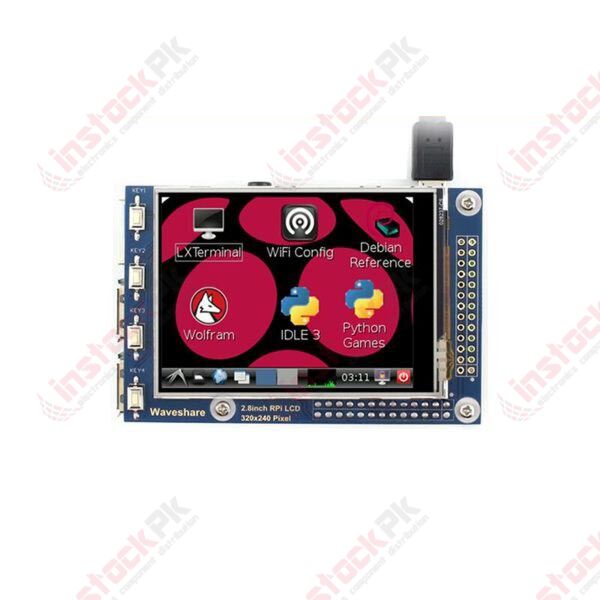

Raspberry Pi 2.8-inch LCD Touch Screen Display
FEATURES:
- 320 × 240 resolution
- Compatible and can be inserted directly into any version of the raspberry pi.
- Comes with 4 buttons for easy application
- Photography (17 camera modes)
- Support soft keyboard (from the mouse and keyboard can also control the system)
SPECIFICATIONS:
|
Types of |
TFT |
|
interface |
SPI |
|
Touch panel control chip |
XPT2046 |
|
Color index |
65536 Colors |
|
Backlight |
led |
|
Resolution |
320 × 240 (Pixel) |
|
Size ratio |
4: 3 |
|
Power consumption |
TBD |
|
Backlight current |
TBD |
|
Working temperature (℃) |
TBD |
PIN CONFIGURATIONS:
|
Pin Number |
Identification |
Description |
|
1,17 |
3.3V |
Power Supply Positive (3.3V Power Input) |
|
2,4 |
5V |
Power Positive (5V Power Input) |
|
3,5,7,8,10 |
NC |
NC |
|
6,14,20,25 |
GND |
Power ground |
|
11 |
TP_IRQ |
The touch panel is interrupted and a low level is detected when the touch panel is pressed |
|
12 |
KEY1 |
button |
|
13 |
RST |
Reset |
|
15 |
LCD_RS |
LCD instruction control, instruction / data register selection |
|
16 |
KEY2 |
button |
|
18 |
KEY3 |
button |
|
19 |
LCD_SI / TP_SI |
LCD display / touch panel SPI data input |
|
twenty one |
TP_SO |
Touch panel SPI data output |
|
twenty two |
KEY4 |
button |
|
twenty three |
LCD_SCK / TP_SCK |
LCD display / touch panel SPI clock signal |
|
twenty four |
LCD_CS |
LCD chip select signal, low select LCD |
|
26 |
TP_CS |
Touch panel chip select signal, low level select the touch panel |
PACKAGE INCLUDES:
- 1 X Raspberry Pi 2.8-inch LCD Screen Display
| Weight (KG) | 0.097500 |
|---|---|
| Manufacturer | Made in China |
| Contrast Ratio | NA |
| Model | Raspberry Pi 2.8-inch LCD |
| Voltage (V) | 3.3~5 |
| Screensize | 2.8" Inch |
| Display Resolution (Pixels) | 320 x 240 |
| Interface | SPI, I2C |
