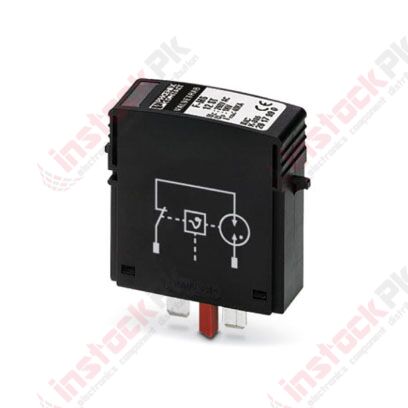

Phoenix Contact Surge Protection Plug FMS-12ST (2817990)

 Phoenix Contact Control Cabinet Solutions offer flexibility, innovation, and cost effective products for every application. From Power Supplies, DIN Rail Terminal Blocks,  Relays, Circuit Breakers, and lighting and more that Phoenix Contact can offer a single source solution for all control cabinet needs. Control cabinet solutions are designed to the required standards and directives, allowing the finished products to meet the highest requirements.

 FEATURES:

1. IEC test classification: II
2. EN type: T2
3. IEC power supply system:TN
4. SPD design: Voltage-switching type
5. Mode of protection: N-PE
6. Mounting type : On base element
7. Color: jet black RAL 9005
8. Housing material: PA 6.6
9. Degree of pollution: 2
10. Flammability rating according to UL 94: V-0
11. Type: DIN rail module, two-section, divisible
12. Number of positions: 1
13. Arrester can be tested with CHECKMASTER from software version: From SW rev. 1.10
14. Surge protection fault message: optical

SPECIFICATIONS:

1. Nominal voltage UN: 240/415 V AC (TN - only N-PE)
2. Nominal frequency fN            : 50 Hz (60 Hz)
3. Maximum continuous voltage UC: 260 V AC
4. Residual current IPE: ≤ 5 µA
5. Standby power consumption PC: ≤ 1.5 mVA
6. Nominal discharge current In (8/20) µs: 20 kA
7. Maximum discharge current Imax (8/20): µs 40 kA
8. Follow current interrupt rating Ifi: 100 A (260 V)
9. Voltage protection level Up: ≤ 1.5 kV
10. Residual voltage Ures : ≤ 0.4 kV (at In)
11. Front of wave sparkover voltage at 6 kV(1.2/50) µs: ≤ 1.5 kV
12. TOV behavior at UT: 1200 V AC (200 ms / withstand mode)
13. Response time tA: ≤ 100 ns
14. SPD Type: 4CA
15. Maximum continuous operating voltage MCOV (N-G): 260 V AC
16. Mode of protection: N-G
17. Power distribution system: 1
18. Nominal frequency: 50/60 Hz
19. Measured limiting voltage MLV (N-G): 1490 V
20. Nominal discharge current In (N-G): 20 kA

INTERFACE:

1. Connection method: VALVETRAB plug-in system

CLASSIFICATIONS:

eCl@ss:

1. eCl@ss 4.0: 27130801
2. eCl@ss 4.1: 27130801
3. eCl@ss 5.0: 27130801
4. eCl@ss 5.1: 27130801
5. eCl@ss 6.0: 27130805
6. eCl@ss 7.0: 27130805
7. eCl@ss 8.0: 27130805
8. eCl@ss 8.0: 27130805

 ETIM:

1. ETIM 2.0: EC000941
2. ETIM 3.0: EC000941
3. ETIM 4.0: EC000941
4. ETIM 5.0: EC000941

UNSPSC:

1. UNSPSC 6.01: 30212010
2. UNSPSC 7.0901: 39121610
3. UNSPSC 11: 39121610
4. UNSPSC 12.01: 39121610
5. UNSPSC 13.2: 39121620

RELATED DOCUMENTS:

1. DataSheet

PARAMETERS:

1. Depth: 55.3 mm
2. Width: 17.5 mm
3. Height: 52.4 mm
4. Horizontal Pitch

PACKAGE INCLUDES:

1. 1 X Phoenix Contact Surge Protection Plug FMS-12ST (2817990)
