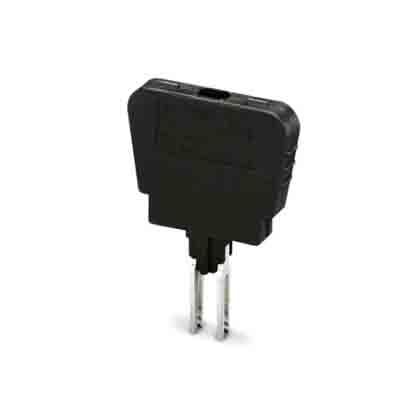

Phoenix Contact Fuse plug ST-SI-UK 4 (0921011)

Phoenix Contact Control Cabinet Solutions offer flexibility, innovation, and cost effective products for every application. From Power Supplies, DIN Rail Terminal Blocks,  Relays, Circuit Breakers,Fuse and lighting and more that Phoenix Contact can offer a single source solution for all control cabinet needs. Control cabinet solutions are designed to the required standards and directives, allowing the finished products to meet the highest requirements.

 FEATURES:

1. Fuse : G / 5 x 20
2. Insulating material group : CTI 600
3. Maximum load current : 6.3 A
4. Nominal current IN : 6.3 A
5. Nominal voltage UN : 250 V
6. Relative insulation material temperature index (Elec., UL 746 B) : 130 °C
7. Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) : 125 °C
8. Static insulating material application in cold : -60 °C
9. Behavior in fire for rail vehicles (DIN 5510-2) : Test passed
10. Flame test method (DIN EN 60695-11-10) : V0
11. Oxygen index (DIN EN ISO 4589-2) : >32 %
12. NF F16-101, NF F10-102 Class I : 2
13. NF F16-101, NF F10-102 Class F : 2
14. Fire protection for rail vehicles (DIN EN 45545-2) R22 : HL 1 - HL 3
15. Fire protection for rail vehicles (DIN EN 45545-2) R23 : HL 1 - HL 3
16. Fire protection for rail vehicles (DIN EN 45545-2) R24 : HL 1 - HL 3
17. Fire protection for rail vehicles (DIN EN 45545-2) R26 : HL 1 - HL 3

CLASSIFICATIONS:

eCl@ss:

1. eCl@ss 4.0 : 27141199
2. eCl@ss 4.1 : 27141199
3. eCl@ss 5.0 : 27141145
4. eCl@ss 5.1 : 27141145
5. eCl@ss 6.0 : 27141149
6. eCl@ss 7.0 : 27141149
7. eCl@ss 8.0 : 27142001
8. eCl@ss 9.0 : 27142001

 ETIM:

1. ETIM 2.0 : EC000897
2. ETIM 3.0 : EC000897
3. ETIM 4.0 : EC002018
4. ETIM 5.0 : EC000036

UNSPSC:

1. UNSPSC 6.01: 30211811
2. UNSPSC 7.0901: 39121409
3. UNSPSC 11: 39121409
4. UNSPSC 12.01: 39121409
5. UNSPSC 13.2: 39121409

RELATED DOCUMENTS:

1. DataSheet

PARAMETERS:

1. Width: 6.1 mm
2. Length: 33.1 mm

PACKAGE INCLUDES:

1. 1 X Phoenix Contact Fuse plug ST-SI-UK 4 (0921011)
