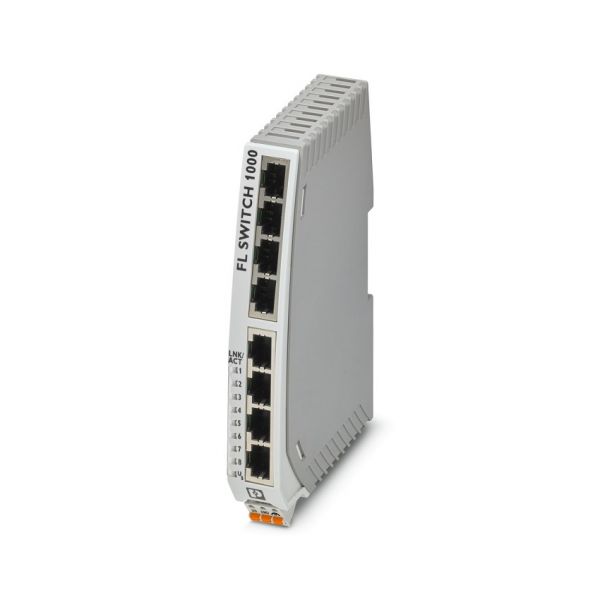

Phoenix Contact: 8 Port Industrial Ethernet Switch FL 1108N - 1085243
SKU
MD-02249
PKR 88,500.00
Narrow Ethernet switch, eight RJ45 ports with 10/100/1000 Mbps on all ports, automatic data transmission speed detection, autocrossing function, and QoS
📦 Pre-Order Queue:
0 Units
⚠ Available on Backorder (In 15-30 business days)
Category: Wireless & Networking Module
| Number of interfaces | 8 |
| Connection method | RJ45 |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission speed | 10/100/1000 Mbps |
| Transmission physics | Ethernet in RJ45 twisted pair |
| Transmission length | 100 m (per segment) |
| Signal LEDs | Data receive, link status |
| No. of channels | 8 (RJ45 ports) |
| Input buffer | 1.5 MBits |
| Output buffer | 1.5 MBits |
Product Properties:
| Product type | Switch |
| Product family | Unmanaged Switch 1000 |
| MTTF | 66.1 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) |
| 786 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) | |
| 709 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) | |
| Basic functions | Unmanaged switch |
| Autonegotiation | |
| Store and Forward switching mode | |
Switch functions |
|
| Basic functions | Unmanaged switch |
| Autonegotiation | |
| Store and Forward switching mode | |
| PROFINET conformance class | Conformance-Class A |
| MAC address table | 4k |
| Status and diagnostic indicators | LEDs: US, link and activity per port |
| Additional functions | 100 BASE-TX/100BASE-FX (IEEE 802.3u) |
| Jumbo frames (Max. 9,216 bytes) | |
| Quality of Service (QoS) prioritization (IEEE 802.1p) | |
| Energy-efficient Ethernet (IEEE 802.3az) | |
| Gigabit Ethernet 1000BASE-T (IEEE 802.3ab) | |
| 10Base-T (IEEE 802.3) | |
Security functions |
|
| Basic functions | Unmanaged switch |
| Autonegotiation | |
| Store and Forward switching mode | |
| Part Number | 1108N 1085243 |
|---|---|
| Manufacturer | phoenix contact |
| Weight (KG) | 0.200000 |
| Packing Unit | 1 Piece |
| Custom tariff number | 8517-6200 |
| Product Availability | Available on Demand |
