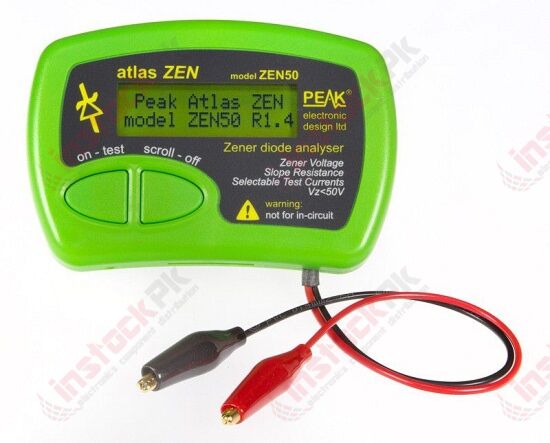

Peak: Atlas ZEN Zener Diode Analyser - ZEN50

Quantity: 1

ZEN50 instrument, Fitted flexible test leads with gold plated crocs, Comprehensive illustrated user guide, AAA alkaline battery.

  • Buy 3 for PKR21,280.00 each and save 5%

ZEN50 - Atlas ZEN Zener Diode Analyser Information:

The Atlas ZEN is ideal for testing Zener diodes (including avalanche diodes), transient suppressors, LEDs and LED strings.

It generates constant current pulses (selectable from 2mA, 5mA, 10mA and 15mA) at voltages from 0V to 50V. So even high voltage Zeners or high voltage LED strings can be tested.

Test currents are supplied in narrow pulses to ensure that the component under test remains at a constant temperature.

The voltage of the part is displayed on the screen together with the test current and also a measure of the component's slope resistance (also known as dynamic impedance).


  • Measure Zener voltage up to 50V
  • Measure slope resistance
  • Tests LEDs, VDRs and TVSs
  • Narrow test pulses to minimise temperature rise
  • Long life from single AAA cell
  • Gold plated crocodile probes
  • Continuous measurement display (updated at 3Hz)

  • ZEN50 Instrument.
  • Fitted flexible test leads with gold plated crocs.
  • Comprehensive illustrated user guide.
  • AAA Alkaline battery.


Technical Specifications

Voltage range: 0.00V to 50.00V
Test currents: 2mA, 5mA, 10mA and 15mA
Slope resistance range: 0 Ohms to 8000 Ohms
Zener voltage accuracy: ±1% ±40mV
Test current duty cycle: 0.60% (typ)
Display sample rate: 3Hz (typ)
Operating temperature range: 10°C to 40°C (50°F to 104°F)
Battery type: Alkaline AAA (suppliled)
Part Number ZEN50
Manufacturer Peak Electronic Design Ltd
Weight (KG) 0.300000
Product Availability Available on Demand
