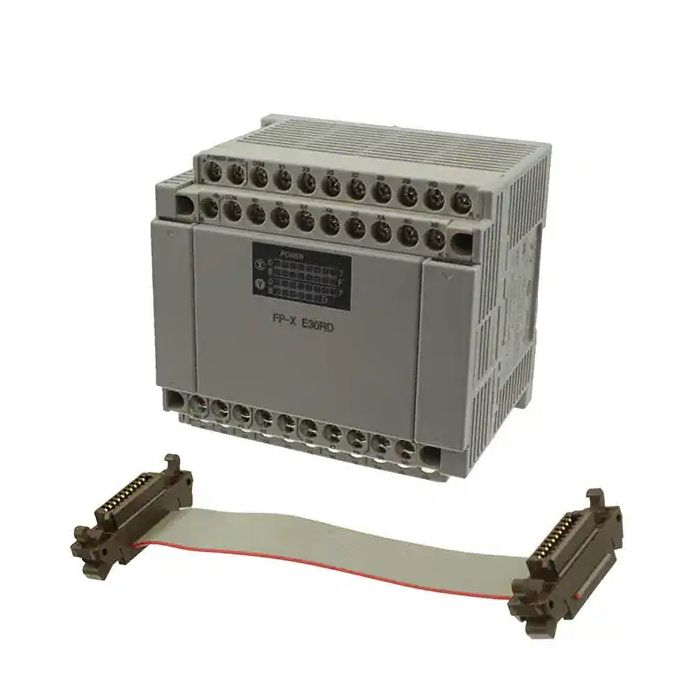

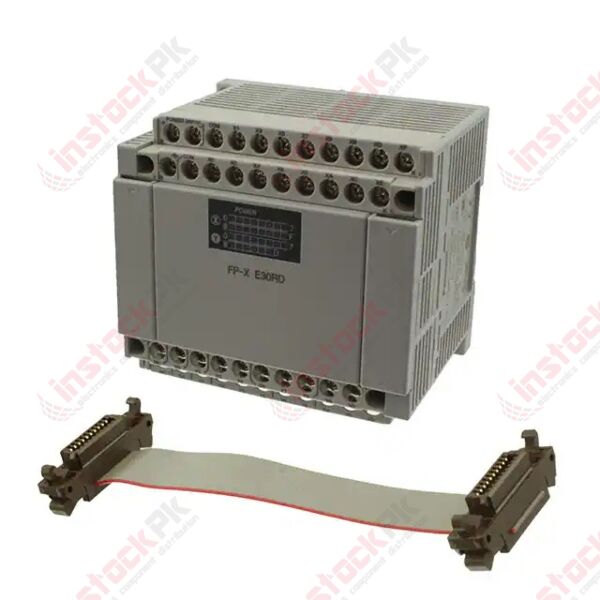

Panasonic: FP-X E30RD Expansion IO Module, 16 input (24V DC) / 14 Output (2A Relay) - AFPX-E30RD
Panasonic PLC Expansion I/O Unit AFPX-E30RD
- Extended Product Type : FP-X series
- Product ID : AFPX-E30RD
- PAnasonic Type Designation : FP-X series
- Ultra high-speed processing
High-speed scan of 0.32µs for a basic instruction (1.9ms scan time for 5 ksteps)
- Large programme capacity
Programme capacity of 32k steps with a sufficient comment area
- Great expandability with a wide variety of options
Max. I/O expansion of 300 channels and further expansion with function expansion cassettes and expansion units
- High security
Program protection with an 8-digit password and a function which prohibits uploads.
- Up to 3 serial communication ports can be used simultaneously.
The use of a communication cassette provides up to 3 serial communication ports.
- USB port
Easy direct connection with a PC via a commercial USB cable (AB type)
- Master memory function cassette makes program transfer easy while
providing a real-time clock
– Programme update in a remote location is easy
– Periodical control and data logging possible
- Simultaneous 2-axis linear interpolation is possible in two pairs
- Multi-point PID control
Sophisticated algorithm and floating-point operations enable high-accuracy PID control
- Compatible with all FP Series PLCs from Panasonic
The FP-X can be programmed using FPWIN Pro programming software in compliance with the international standard IEC 61131-3.
- Power supply : 24 V DC
- 16-point input of 24 V DC, 14-point relay output of 2 A
Remarks; Possible to connect up to 8 units including E16 and AFPX-EFP0. With an
8 cm 3.15 in extension cable
