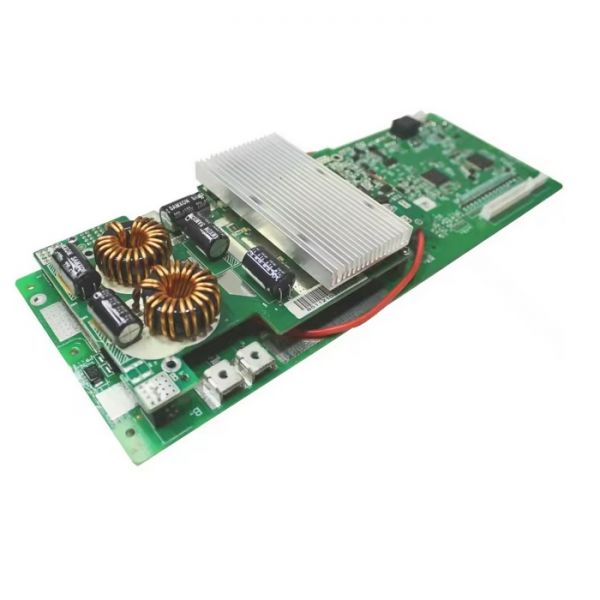

PACE: Lithium Battery Management System BMS Adapter 15S 100A 48V For LifePOS - P15S100A

The integrated intelligent battery management system BMS can not only protect Lithium Batteries from various abnormal conditions, but also accurately monitor the charging/discharging process of each battery cell, with accurate data and safety. If there is no Lithium Battery management system BMS, the charge and discharge and service life of the battery may be affected.



Why Choose BMS from UFO POWER?

● Easy to use: This Lithium BMS is designed for 16 series 100A LiFePO4 Batteries.
● Ensure LiFePO4 Battery safety: As the heart of the Lithium battery pack , this BMS helps to avoid battery pack from explosion, fire, or other potential damage.
● Integrated Design: Integrate the functions of acquisition, management and communication of LiFePO4 batteries in a board.
●10+ Years BMS Experience: UFO POWER R&D team has developed these intelligent battery management systems used for Lithium Ion Batteries for more than 10 years.
● Widely Use: This BMS can be used for indoor and outdoor base stations, including an integrated base station, marginal station, vertical station, Acer station, solar base station and so on.
● Extends Your Battery Life: Choosing the correct protection circuit board and applying it appropriately is vital to the longevity of LiFePO4 batteries. Accurate SOC calculation with  SOC learning function.

Product Parameters

1 Overall over-charge protection voltage                 55.5V
2 Overall over-discharge protection voltage             37.5V
3 Balanced turn-on voltage                                    3.4±0.05V
4 Charging over current protection                         110A
5 High Voltage Precision (<=20mV)
6 High Current Precision (<=2%@FS)
7 Four Temperature Channels (<=3℃)

Multiple BMS Function

- Over charge protection
- Over discharge protection
- Over current protection
- Temperature protection
- Short circuit protection
- Charging balance function
- Cell capacity estimation function

What is a BMS equipped with?

Ø High-integrated AFE

Ø Low Power Consumption

Ø Isolated Power Circuit

Ø Flexible Sleep & Wakeup

Ø High Voltage Precision (<=20mV)

Ø High Current Precision (<=2%@FS)

Ø 4 Temperature Channels (<=3℃)

Ø Cell Balance

Ø Short Circuit Protection

Ø SOC Estimating

Ø Buzzer Fault Alarm

Ø SOH Estimating

Ø LED Indication (optional)

Ø LCD Module (optional)

Ø Status & Data Storage (optional)

Ø RS232 Interface for System (optional)

Ø CAN Interface for System (optional)

Ø Flexible Parameter Setting

Ø RS48 Interface for System (optional)

Ø Bluetooth  (optional)

Ø Charge Current Limiting (optional)

Ø Complies with CommunicaƟon Standard
