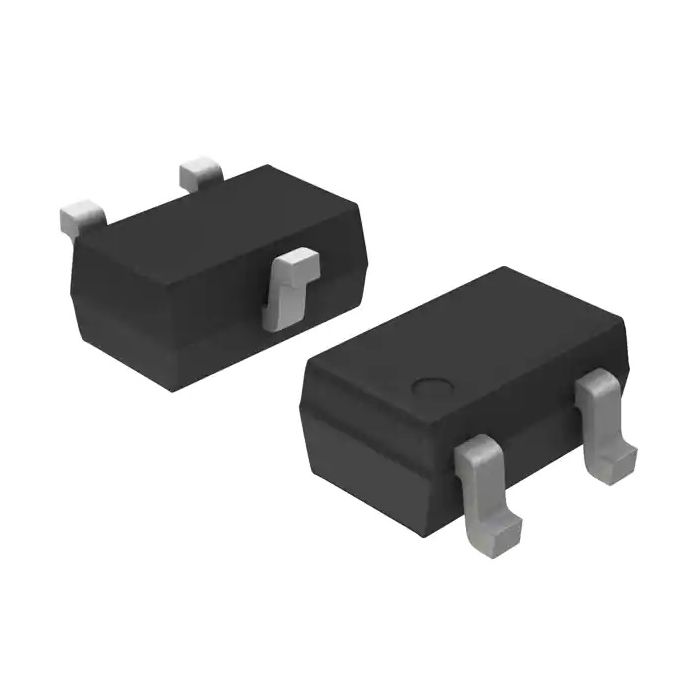

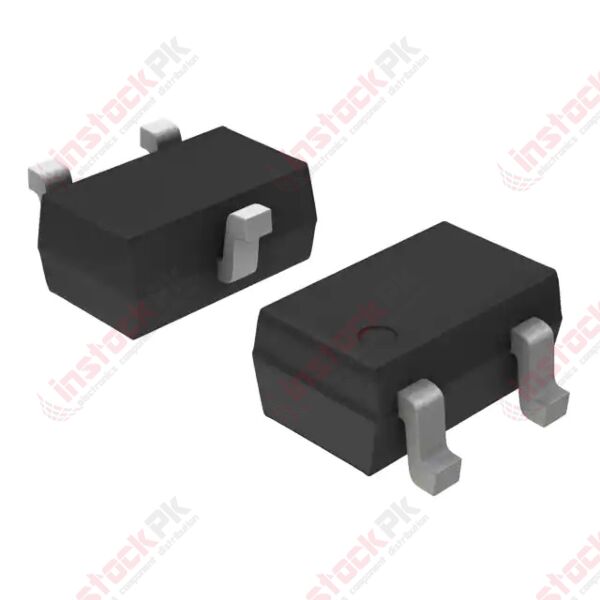

Onsemi: Switching Bipolar PNP Transistor BJT 600mA 40V - MMBT4403WT1G

PKR 55.00

SKU

MD-01948

Specifications

Product Attribute	Attribute Value
Manufacturer:	onsemi
Product Category:	Bipolar Transistors - BJT
Mounting Style:	SMD/SMT
Package / Case:	SC-70-3
Transistor Polarity:	PNP
Configuration:	Single
Collector- Emitter Voltage VCEO Max:	40 V
Collector- Base Voltage VCBO:	40 V
Emitter- Base Voltage VEBO:	5 V
Collector-Emitter Saturation Voltage:	750 mV
Maximum DC Collector Current:	600 mA
Pd - Power Dissipation:	225 mW
Gain Bandwidth Product fT:	200 MHz
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 150 C
Series:	MMBT4403W
Packaging:	Reel
Packaging:	Cut Tape
Brand:	onsemi
Continuous Collector Current:	- 0.6 A
DC Collector/Base Gain hfe Min:	30
Height:	1.01 mm
Length:	2.9 mm
Product Type:	BJTs - Bipolar Transistors
