Omron Rotary Encoder E6A2-CW3E (360P/R)
PKR 4,800.00
SKU
MD-00563
- Buy 3 for PKR 4,720.00 each and save 2%
- Buy 10 for PKR 4,590.00 each and save 4%
- Buy 25 for PKR 4,450.00 each and save 7%
Incremental, Resolution 360P/R, 25-dia., 5 to 12 VDC, NPN voltage output, Pre-wired models (0.5 m)
Categorise
| Incremental Shaft model |
|
| Diameter | 25 dia. |
| Power supply voltage | DC5-5% to 12+10% V (ripple (p-p): 5% max.) |
| Current consumption | 30 mA DC max. |
| Resolution | 360 P/R |
| Inrush current | Approx. 9 A (Time: Approx. 0.3 ms) |
| Output phases | A, B |
| Control output (Output type) | NPN voltage output |
| Control output (Output resistance) | 2 kΩ |
| Control output (Load current) | 20 mA max. |
| Control output (Residual voltage) | 0.4 VDC max. (Load current: at 20 mA max.) |
| Max. response frequency | 30 kHz |
| Phase difference on output | 90±45°between A and B |
| Rise and fall times of output | 1 µs max. (Cable length: 2 m, sink current: 10 mA) |
| Starting torque | 1 mN.m max. |
| Moment of inertia | 1 x 10**-7 kg.m**2 max. |
| Shaft loading | Radial: 10 N Thrust: 5 N |
| Max. permissible rotation | 5000 r/min |
| Ambient temperature | Operating: -10 to 55 ℃ Storage: -25 to 80 ℃ (with no icing) |
| Ambient humidity | Operating: 35 to 85% RH Storage: 35 to 85% RH (with no condensation) |
| Insulation resistance | Between charged parts and the case: 20 MΩ min. at 500 VDC |
| Dielectric strength | Between charged parts and the case: 500 VAC at 50/60 Hz for 1 min |
| Vibration resistance | 10 to 55 Hz, 1.5-mm double amplitude each in X, Y, and Z directions for 2 h |
| Shock resistance | 500 m/s**2 for 3 times each in X, Y, and Z directions |
| Degree of protection | IEC: IP50 |
| Connection method | Pre-wired models (Cable_length: 0.5 m) |
| Material (body) | Aluminum |
| Material (case) | Aluminum alloy |
| Material (shaft) | SUS420J2 |
| Material (mounting bracket) | Iron zinc plating |
| Weight (packed state) | Approx. 35 g |
| Accessories |
Instruction manual, coupling and hex-head spanner
|
RELATED DOCUMENTS:

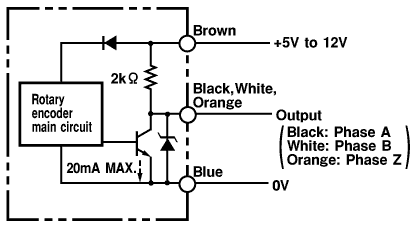

PINOUT:
PACKAGE INCLUDES:
- 1 x Omron Rotary Encoder E6A2-CW3E (360P/R)
| Weight (KG) | 0.065000 |
|---|---|
| Manufacturer | OMRON electronics |
| Model Number | E6A2-CW3E |
| Voltage (Min) | 5V |
| Voltage (Max) | 12V |
| Current (A) | 30m |
| Temperature Range (Min) | -25°C |
| Step Per Revolution(Min) | NA |
| Step Per Revolution (Max) | 5,000 RPM |
| Torque | 1 mN.m |
| Size (mm) | Length=500mm |
