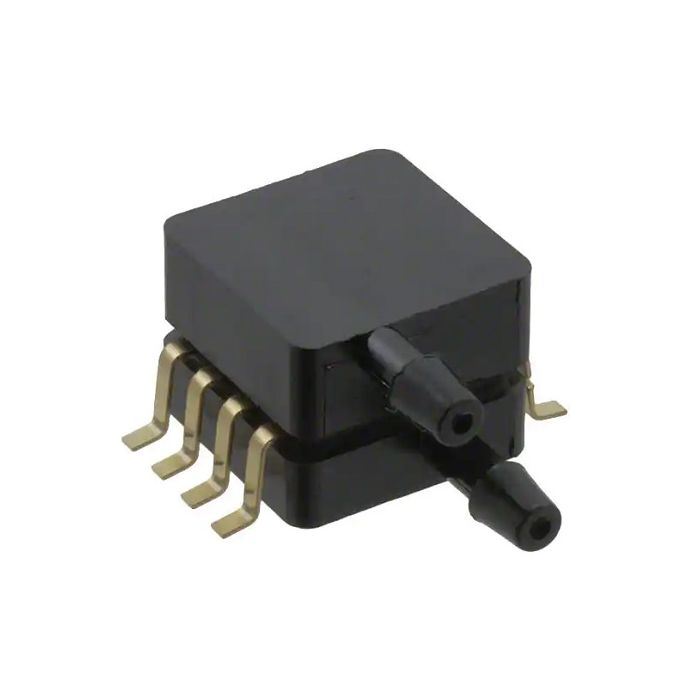

NXP: Differential Pressure Sensor, 90 mV/kPa, -25 kPa, 25 kPa - MPXV7025DP

The MPXV7025DP is an integrated silicon Pressure Sensor for use with remote monitoring devices. The MPXV7025 series piezoresistive transducer is a state-of-the-art monolithic silicon pressure sensor designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D inputs. This patented, single element transducer combines advanced micromachining techniques, thin-film metallization and bipolar processing to provide an accurate, high level analog output signal that is proportional to the applied pressure. The MPXV7025 is designed to measure positive and negative pressure. In addition, with an offset specifically at 2.5V instead of the conventional 0V, this new series allows to measure pressure up to 25kPa through each port for pressure sensing but also for vacuum sensing (refer to the transfer function in the data sheet for more detailed information).
