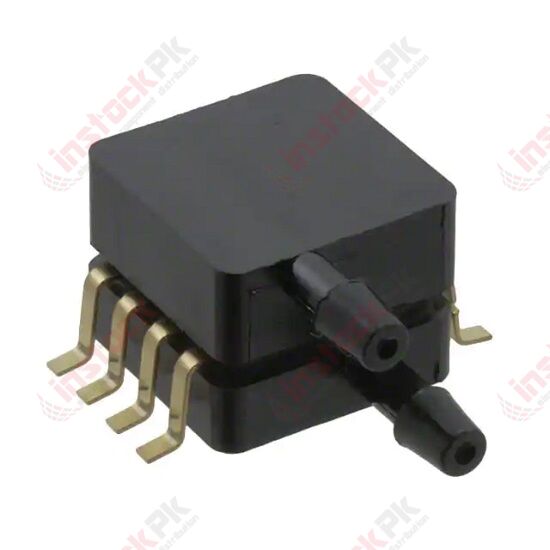

NXP: Differential Pressure Sensor, 1 V/kPa, -2 kPa, 2 kPa - MPXV7002DP
SKU
MD-01674
PKR 11,300.00
⚡ Real-Time Stock:
79 Units
✔ In Stock & Ready to Ship
- Buy 3 for PKR 10,735.00 each and save 5%
Category: Pressure Sensors
The MPXV7002DP is a dual port, integrated silicon pressure sensor in 8 pin SOIC package. This state of the art monolithic silicon pressure sensor is designed for wide range of applications. It is particularly suitable for those employing microcontroller or microprocessor with A/D inputs. This transducer combines advanced micromachining techniques, thin film metallization and bipolar processing to provide an accurate, high level analogue output signal that is proportional to applied pressure.
- On-chip signal conditioned, temperature compensated and calibrated
- 2.5% typical error over 10°C to 60°C with auto zero
- 6.25% maximum error over 10°C to 60°C without auto zero
- Temperature compensated over 10°C to 60°C
- Patented silicon shear stress strain gauge
- Differential configurations
- Pressure range from -2KPa to 2KPa
- Supply voltage range from 4.75VDC to 5.25VDC
- Response time of 1ms
Applications
Sensing & Instrumentation, Automotive
| Part Number | MPXV7002DP |
|---|---|
| Manufacturer | NXP / Freescale |
| Weight (KG) | 0.010000 |
| Product Availability | In Stock |
