NXP: Absolute Pressure Sensor, 6.4 mV/kPa, 15 kPa, 700 kPa - MPX5700AP
PKR 12,500.00
SKU
MD-01673
- Buy 3 for PKR 11,875.00 each and save 5%
- Buy 10 for PKR 11,500.00 each and save 8%

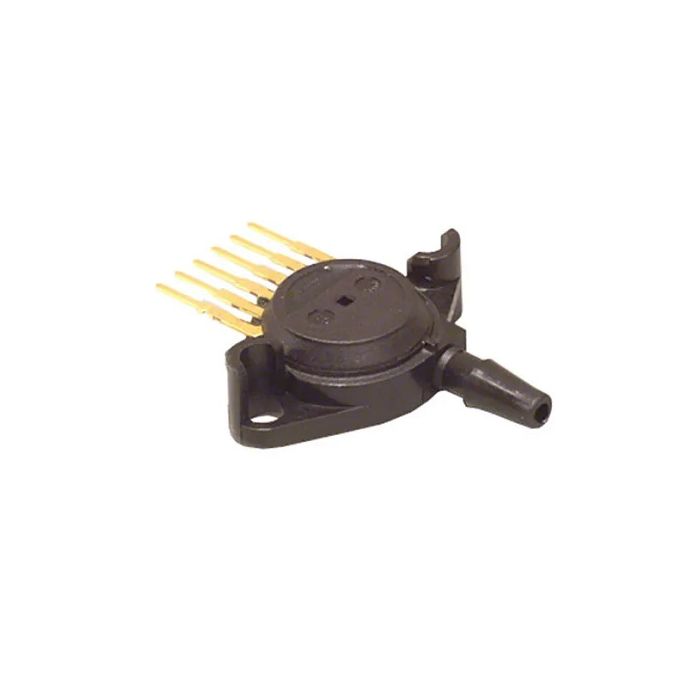

The MPX5700AP is a single port, absolute integrated silicon pressure sensor in 6 pin SIP package. This piezoresistive transducer is a state of the art monolithic silicon pressure sensor designed for wide range of applications. This patented, single element transducer combines advanced micromachining techniques, thin film metallization and bipolar processing to provide an accurate and high level analogue output signal that is proportional to applied pressure.
- On-chip signal conditioned, temperature compensated and calibrated
- 2.5% maximum error over 0°C to 85°C
- Ideally suited for microprocessor or microcontroller based systems
- Patented silicon shear stress strain gauge
- Pressure range from 15KPa to 700KPa
- Supply voltage range from 4.75VDC to 5.25VDC
- Sensitivity of 6.4mV/KPa
- Response time of 1ms
- Durable epoxy unibody element
- Operating temperature range from -40°C to 125°C
Applications
Sensing & Instrumentation
| Part Number | MPX5700AP |
|---|---|
| Manufacturer | NXP / Freescale |
| Weight (KG) | 0.010000 |
| Product Availability | In Stock |
