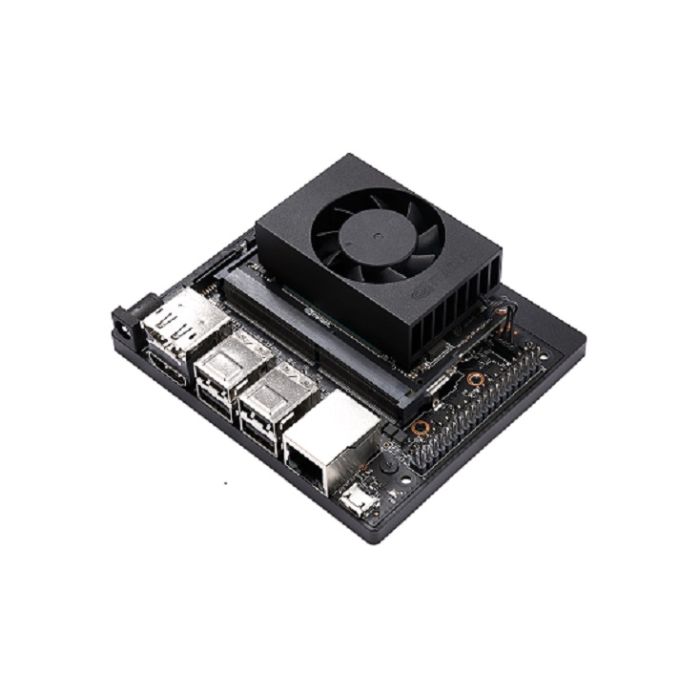

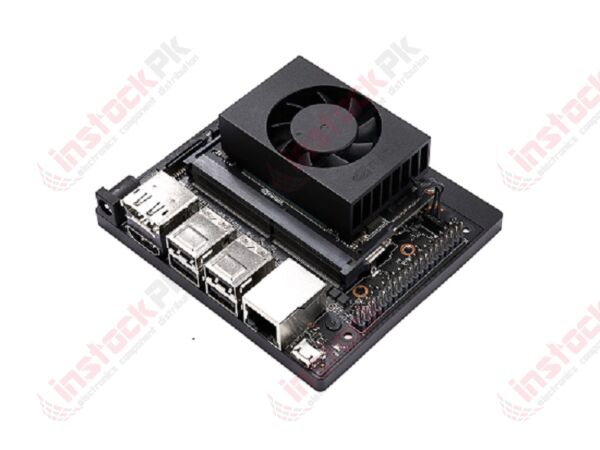

NVidia: Jetson Xavier NX Developer Kit - 945-83518-0000-000
NVIDIA® Jetson Xavier™ NX brings supercomputer performance to the edge in a small form factor system-on-module (SOM). Up to 21 TOPS of accelerated computing delivers the horsepower to run modern neural networks in parallel and process data from multiple high-resolution sensors—a requirement for full AI systems.
- Buy 2 for PKR89,725.00 each and save 3%
- Buy 5 for PKR87,875.00 each and save 5%
The NVIDIA® Jetson Xavier NX™ Developer Kit includes a power-efficient, compact Jetson Xavier NX module for AI edge devices. It benefits from new cloud-native support, and accelerates the NVIDIA software stack in as little as 10 W with more than 10x the performance of its widely adopted predecessor Jetson TX2.
For intelligent machine OEMs, start-ups and AI application developers who want to create breakthrough products, the Jetson Xavier NX Developer Kit delivers the capability to develop and test power-efficient, small form factor solutions with accurate, multi-modal AI inference.
Comparison Between The NVIDIA Jetson AI Developer Kits
| Jetson Nano Developer Kit | Jetson TX2 Developer Kit | Jetson Xavier NX Developer Kit |
Jetson AGX Xavier Developer Kit | |
|---|---|---|---|---|
| AI Performance | 0.5 TFLOPS (FP16) | 1.3 TFLOPS (FP16) | 6 TFLOPS (FP16) 21 TOPS (INT8) |
5.5-11 TFLOPS (FP16) 20-32 TOPS (INT8) |
| GPU | 128-core NVIDIA Maxwell™ GPU | 256-core NVIDIA Pascal™ GPU architecture with 256 NVIDIA CUDA cores | NVIDIA Volta architecture with 384 NVIDIA CUDA® cores and 48 Tensor cores | 512-Core Volta GPU with Tensor Cores |
| CPU | Quad-core ARM A57 @ 1.43 GHz | Dual-Core NVIDIA Denver 2 64-Bit CPU Quad-Core ARM® Cortex®-A57 MPCore |
6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6 MB L2 + 4 MB L3 | 8-Core ARM v8.2 64-Bit CPU, 8 MB L2 + 4 MB L3 |
| Memory | 4 GB 64-bit LPDDR4 25.6 GB/s | 8GB 128-bit LPDDR4 1866 MHz - 59.7 GB/s |
8 GB 128-bit LPDDR4x @ 51.2GB/s | 32 GB 256-Bit LPDDR4x | 137 GB/s |
| Power Consumption | 5-10W | 7.5-15W | 10-15W | 10-30W |
| Price | $99 | $399 | $399 | $699 |
We provide a wide selection of AI-related products including Machine Learning, Computer Vision, Edge Computing, Speech Recognition & NLP, and Neural Networks Acceleration. Check here for more products you may need.
You can head over to NVIDIA Jetson Download Center to explore the necessary drivers and software for this product.
Technical Specifications
| GPU | NVIDIA Volta architecture with 384 NVIDIA CUDA® cores and 48 Tensor cores |
| CPU | 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6 MB L2 + 4 MB L3 |
| DL Accelerator | 2x NVDLA Engines |
| Vision Accelerator | 7-Way VLIW Vision Processor |
| Memory | 8 GB 128-bit LPDDR4x @ 51.2GB/s |
| Storage | microSD (not included) |
| Video Encode | 2x 4K @ 30 | 6x 1080p @ 60 | 14x 1080p @ 30 (H.265/H.264) |
| Video Decode | 2x 4K @ 60 | 4x 4K @ 30 | 12x 1080p @ 60 | 32x 1080p @ 30 (H.265) 2x 4K @ 30 | 6x 1080p @ 60 | 16x 1080p @ 30 (H.264) |
| Camera | 2x MIPI CSI-2 DPHY lanes |
| Connectivity | Gigabit Ethernet, M.2 Key E (WiFi/BT included), M.2 Key M (NVMe) |
| Display | HDMI and display port |
| USB | 4x USB 3.1, USB 2.0 Micro-B |
| Others | GPIO, I2C, I2S, SPI, UART |
| Mechanical | 103 mm x 90.5 mm x 34.66 mm |
Please refer to NVIDIA documentation for what is currently supported, and the Jetson Hardware page for a comparison of all Jetson modules.
Developer Kit Contents
- NVIDIA Jetson Xavier NX module and reference carrier board
- 19V power supply
- 802.11 plug-in WLAN and Bluetooth® module with antennas
(assembled underneath the carrier board) - Small paper card with quick start and support information
| Part Number | 945-83518-0000-000 |
|---|---|
| Manufacturer | NVIDIA |
| Weight (KG) | 0.300000 |
| Product Availability | In Stock |
