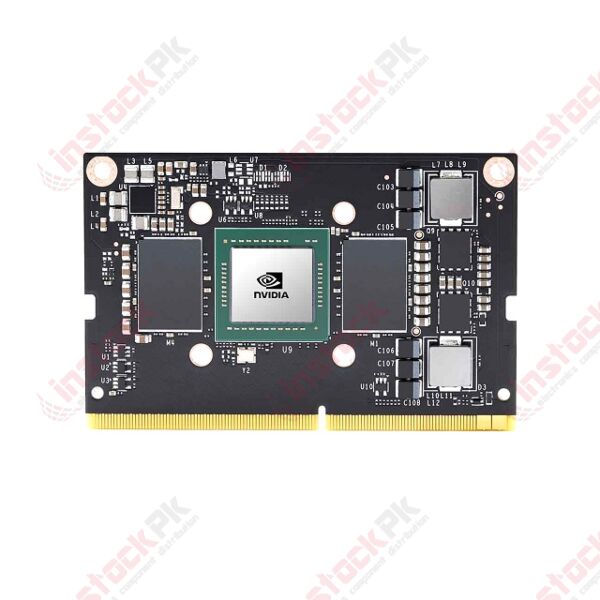

NVIDIA: Jetson TX2 NX Module 4GB - 900-13636-0010-000
NVIDIA® Jetson™ TX2 NX delivers the next step in AI performance for entry-level embedded and edge products. It provides up to 2.5X the performance of Jetson Nano, and shares form-factor and pin compatibility with Jetson Nano and Jetson Xavier™ NX.
Description
NVIDIA® Jetson™ TX2 NX delivers the next step in AI performance for entry-level embedded and edge products. It provides up to 2.5X the performance of Jetson Nano, and shares form-factor and pin compatibility with Jetson Nano and Jetson Xavier™ NX.
This small module packs hardware accelerators for the entire AI pipeline, and NVIDIA JetPack™ SDK provides the tools you need to use them for your application. Custom AI network development is easy with pre-trained AI models from NVIDIA NGC™ and the NVIDIA Transfer Learning Toolkit, and containerized deployments make updates for your product flexible and seamless.
Ease of development and speed of deployment, plus a unique combination of form-factor, performance, and power advantage, makes Jetson TX2 NX the ideal mass-market AI product platform.
Features
- Compact size SoM powerful enough for advanced AI applications with low power consumption
- Up to 2.5X the performance of Jetson Nano
- Shares form-factor and pin compatibility with Jetson Nano and Jetson Xavier™ NX
- Supports entire NVIDIA Software Stack for application development and optimization
- Enables development of AI applications using NVIDIA JetPack™ SDK
- Easy to build, deploy, and manage AI at the edge
- Flexible and scalable platform to get to market with reduced development costs
- Continuous updates over the lifetime of the product
Comparison Between The NVIDIA Jetson AI Modules
| Jetson Nano | Jetson TX2 NX | Jetson TX2 Series | Jetson Xavier NX | Jetson AGX Xavier Series | |
|---|---|---|---|---|---|
| AI Performance | 0.5 TFLOPS (FP16) | 1.33 TFLOPs | 1.3 TFLOPS (FP16) | 6 TFLOPS (FP16) 21 TOPS (INT8) |
5.5-11 TFLOPS (FP16) 20-32 TOPS (INT8) |
| GPU | 128-core NVIDIA Maxwell™ GPU | NVIDIA Pascal™ Architecture GPU with 256 CUDA cores | 256-core NVIDIA Pascal™ GPU architecture with 256 NVIDIA CUDA cores | NVIDIA Volta architecture with 384 NVIDIA CUDA® cores and 48 Tensor cores | 512-Core Volta GPU with Tensor Cores |
| CPU | Quad-core ARM A57 @ 1.43 GHz | Dual-Core NVIDIA Denver 2 64-Bit CPU Quad-Core ARM® Cortex®-A57 MPCore processor |
Dual-Core NVIDIA Denver 2 64-Bit CPU Quad-Core ARM® Cortex®-A57 MPCore |
6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6 MB L2 + 4 MB L3 | 8-Core ARM v8.2 64-Bit CPU, 8 MB L2 + 4 MB L3 |
| Memory | 4 GB 64-bit LPDDR4 25.6 GB/s | 4GB 128-bit LPDDR4, 1600 MHz - 51.2 GB/s | 8GB 128-bit LPDDR4 1866 MHz - 59.7 GB/s |
8 GB 128-bit LPDDR4x @ 51.2GB/s | 32 GB 256-Bit LPDDR4x | 137 GB/s |
| Power Consumption | 5-10W | 7.5W / 15W | 7.5-15W | 10-15W | 10-30W |
| Dimensions | 45 x 70mm | 45 x 70mm | 50 x 87mm | 45 x 70mm | 100 x 87mm |
| Price | $149 | $199 | Starting at $299 | $499 | Starting at $679 |
Specifications
| Specification | Details |
|---|---|
| AI Performance | 1.33 TFLOPs |
| GPU | NVIDIA Pascal™ Architecture GPU with 256 CUDA cores |
| CPU | Dual-Core NVIDIA Denver 2 64-Bit CPU Quad-Core ARM® Cortex®-A57 MPCore processor |
| Memory | 4GB 128-bit LPDDR4, 1600 MHz - 51.2 GB/s |
| Storage | 16GB eMMC 5.1 Flash Storage |
| Power | 7.5W / 15W |
| PCIe | 1x1 + 1x2 (PCIe Gen2) |
| CSI Camera | Up to 5 cameras (12 via virtual channels) 12 lanes MIPI CSI-2 D-PHY 1.1 (up to 30 Gbps) |
| Video Encode | 1x 4Kp60 3x 4Kp30 4x 1080p60 8x 1080p30 (H.265) 1x 4Kp60 3x 4Kp30 7x 1080p60 14x 1080p30 (H.264) |
| Video Decode | 2x 4Kp60 4x 4Kp30 7x 1080p60 14x 1080p30 (H.265 & H.264) |
| Display | 2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 1 x2 DSI (1.5Gbps/lane) |
| Networking | 10/100/1000 BASE-T Ethernet |
| Mechanical | 69.6 mm x 45 mm 260-pin SO-DIMM connector |
Part List
1 x NVIDIA® Jetson™ TX2 NX Module
| Part Number | 900-13636-0010-000 |
|---|---|
| Manufacturer | NVIDIA |
| Weight (KG) | 0.050000 |
| Packing Unit | 1 Piece |
| Memory | 4 GB |
| Product Availability | Available on Demand |
