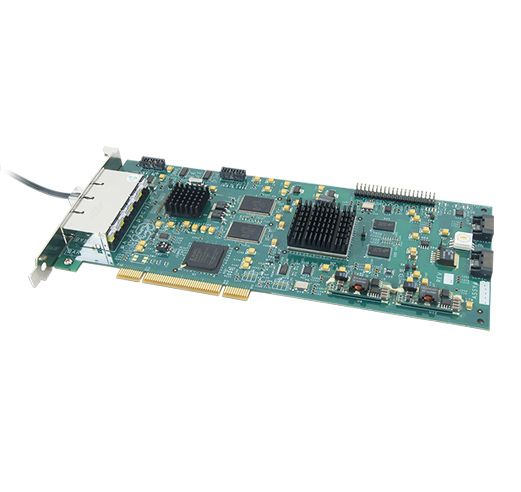

NetFPGA Virtex-II Pro FPGA Development Board
- Buy 2 for PKR198,265.00 each and save 5%
- Buy 5 for PKR187,830.00 each and save 10%
The NetFPGA platform enables researchers and instructors to build working prototypes of high-speed, hardware-accelerated networking systems. The platform can be used in the classroom to teach students how to build Ethernet switches and Internet Prototcol (IP) routers using hardware rather than software. The NetFPGA can be used by researchers to prototype advanced services for next-generation networks.The NetFPGA is an open platform and available to developers worldwide. Reference designs included with the system include an IPv4 router, an Ethernet switch, and a four-port NIC. Researchers have used the platform to build advanced network flow processing systems. A single NetFPGA board can route packets over four subnets, and multiple NetFPGA boards can be installed in the same PC.
The system consists of a reprogrammable development board, reference implementations, and sample courseware. The development board itself is a PCI card that can be installed in any PC with an available full-length slot. Hosted on the board are a user-programmable FPGA (with two PowerPC processors), SRAM, DRAM, and four 1Gbps Ethernet ports. Programming and administration of the development board are performed by the host PC via the PCI bus. This allows users to remotely develop and deploy designs since physical access to the board is not required.
FEATURES:
- Xilinx Virtex-II Pro 50
- 4.5 MB static random access memory (SRAM)
- JTAG cable connector can be used to run Xilinx ChipScope Pro
- Wire-speed processing on all ports at all time using FPGA logic
- Double data rate random access memory (DDR2 DRAM)
- Standard PCI form factor
- Dimensions: 25cm long x 10cm tall (10" x 4")
- Connector block on left side of the PCB interfaces to 4 external RJ45 plugs
- Interfaces to standard Gigabit Ethernet using Cat5E or Cat6 copper network cables
- Two SATA-style connectors to Multi-Gigabit I/O (MGIO) on right-side of PCB
PHYSICAL DIAGRAM:
RELATED DOCUMENTS:
PACKAGE INCLUDES:
- 1 X NetFPGA Virtex-II Pro FPGA Development Board
| Part Number | NA |
|---|---|
| Weight (KG) | 0.020000 |
| Manufacturer | Digilent |
| Model Number | NetFPGA Virtex-II |
| Voltage (V) | NA |
| Current (A) | NA |
| Power | NA |
| Processor | Xilinx Virtex-II Pro 50 |
| Frequency | 400 MHz |
| Memory | 4.5 MB |
| Operating System | NA |
| Temperature Range (Min) | -40°C |
| Bluetooth Interface | No |
| Interface | Four RJ45 network ports |
| Size (mm) | 10" x 4" |
