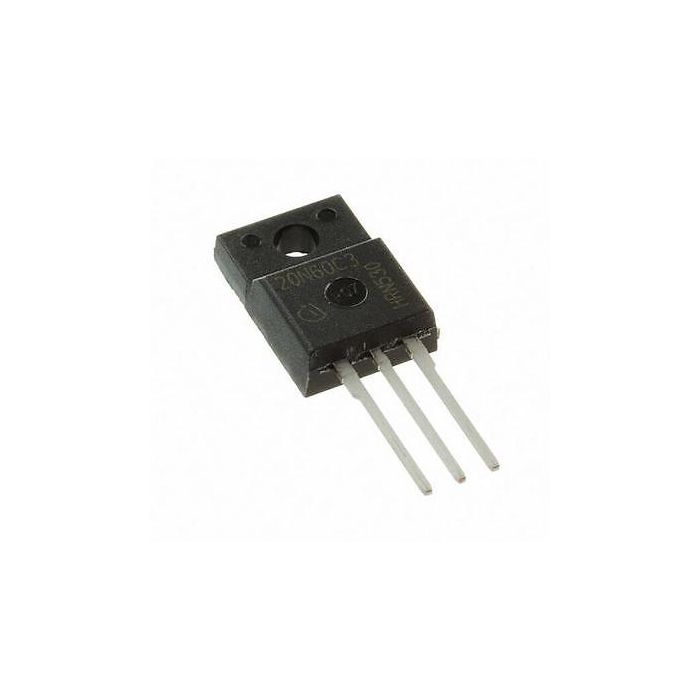

N-Channel MOSFET SPA20N60C3 (600V/20.7A)
SKU
MD-00652
PKR 150.00
N-Channel MOSFET SPA20N60C3 (600V/20.7A)
📦 Pre-Order Queue:
0 Units
⚠ Available on Backorder (In 15-30 business days)
Categories: Components, Integrated Circuit, Electronics Parts
SPECIFICATIONS:
- Mounting Style: Through Hole
- Number of Channels: 1 Channel
- Transistor Polarity: N-Channel
- Vds - Drain-Source Breakdown Voltage: 600 V
- Id - Continuous Drain Current: 20.7 A
- Drain-Source Resistance: 190 mOhms
- Vgs - Gate-Source Voltage: 20 V
- Minimum Operating Temperature: - 55 C
- Maximum Operating Temperature: + 150 C
RELATED DOCUMENTS:
PACKAGE INCLUDES:
- 1 X N-Channel MOSFET SPA20N60C3 (600V/20.7A)
| Weight (KG) | 0.020000 |
|---|---|
| Manufacturer | Infineon Technologies |
| Model Number | SPA20N60C3 |
| Voltage (Min) | NA |
| Voltage (Max) | 600V |
| Power | NA |
| Current (A) | 20.7 |
| Temperature Range (Min) | -55°C |
| Temperature Range (Max) | 150°C |
| Memory | NA |
| Num of Pin's | 2 |
| SMD_Package | DIP TO-220FP-3 |
