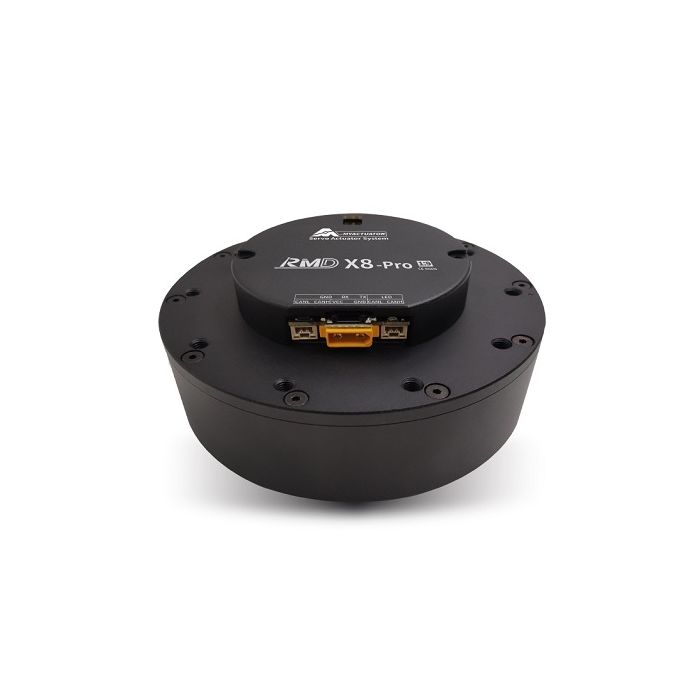

MyActuator: High Precision Servo Actuator Module RMD-X8 PRO V2 1:9 - A00085
Special Price
PKR 118,000.00
Regular Price
PKR 147,000.00
SKU
MD-02137
Technical specifications
Parameters/Model
|
RMD-X8 PRO | |
Item code
|
A00085 | |
| 减速机速比（Reducer ratio） | 9 : 1 | |
| 输入电压（input voltage） | V | 24-48 |
| 最大空载转速 (No -load Speed) | rpm | 160 @48V |
| 额定转速 (Nominal Speed) | rpm | 122 |
| 额定电流（Nominal current） | A | 5 |
| 额定功率（Norminal power） | W | 166 |
| 额定扭矩 (Nominal torque) | N.M | 13 |
| 电机效率（motor efficency） | % | 77% |
| 线电阻（resistance） | Ω | 0.54 |
| 接线方式（wire connect） | Y | |
| 相间电感（Phase to phase inductance） | mH | 0.28 |
| 转速常数（Speed constant） | rpm/v | 30 |
| 扭矩电流常数（Torque constant） | N.M/A | 2.6 |
| 轴向负载 (Axial direction payload） | N.M | 985 |
| 径向负载(Radial direction payload) | N.M | 1250 |
| 转子惯量（Rotor inertia） | gc㎡ | 3400 |
| 极对数（Number of pole pairs） | 20 | |
| 电机重量( Motor weight) | g | 710 |
| 环境温度 （Environment temperature） | ℃ | （-20 ~ 55 ℃） |
| 减 速 箱 背 隙 (Backlash） | A r c m in |
| Part Number | RMD-X8 PRO 1:9 || A00085 |
|---|---|
| Manufacturer | MY ACTUATOR |
| Packing Unit | 1 Piece |
| Product Availability | Available on Demand |
