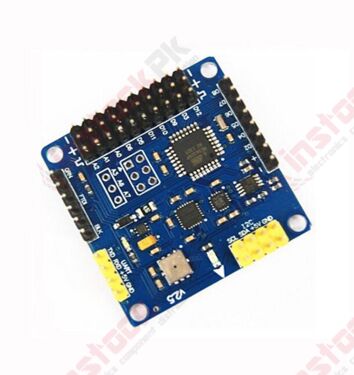

Multiwii MWC SE MultiCopter Flight Control Board V2.5

The Multi Wii SE 2.5 flight controller board (is based and comes pre-programmed with the open source MultiWii flight controller system. This board is able to control various radio control aircraft including quad, hex, and octocopter designs. Its excellent stability allows for fully autonomous flight with FPV or any kind acrobatics. The board includes a broad array of sensors consisting of a triple axis accelerometer, triple axis gyroscope, triple axis magnetometer (compass), and a barometer. Header pins for allow convenient interface to an RC receiver, ESC’s, and servo’s. Additionally there are also serial and I2C interfaces to allow add-ons such as FTDI USB interface, Bluetooth, GPS, and OLED/LCD displays. The board is also fully compatible with the MultiWii configuration software and Android MultiWii Ez app (via Bluetooth) providing wireless monitoring and control in flight.

SPECIFICATIONS:

1. Small size,35x35mm mounting holes
2. 6 PWM input channels for standard receiver or PPM SUM receiver
3. Up to 8-axis motor output
4. Supported 2-axis gimbal and auto trigger control
5. FTDI/UART port for upload firmware, debug, Bluetooth module or LCD display
6. I2C port for extend sensor, I2C LCD/OLED display or I2C-GPS NAV board for GPS and Sonar
7. Ultra low noise 3.3V LDO voltage regulator
8. ATMEGA328P Microcontroller
9. MPU6050C 6 axis gyro/accel with Motion Processing Unit
10. HMC5883L 3-axis digital magnetometer
11. BMP085 digital pressure sensor
12. PCA9306DP1 logic level converter

FLIGHT MODE:

1. Acro
2. Level
3. Alt Hold
4. Head Lock
5. HeadFree (CareFree)
6. GPS Hold (Need GPS receiver + I2C-GPS NAV Board)
7. GPS Return to home position (Need GPS receiver + I2C-GPS NAV Board)

RELATED DOCUMENTS:

1.  Software.

PACKAGE INCLUDES:

1. 1 X Multiwii MWC SE MultiCopter Flight Control Board V2.5
