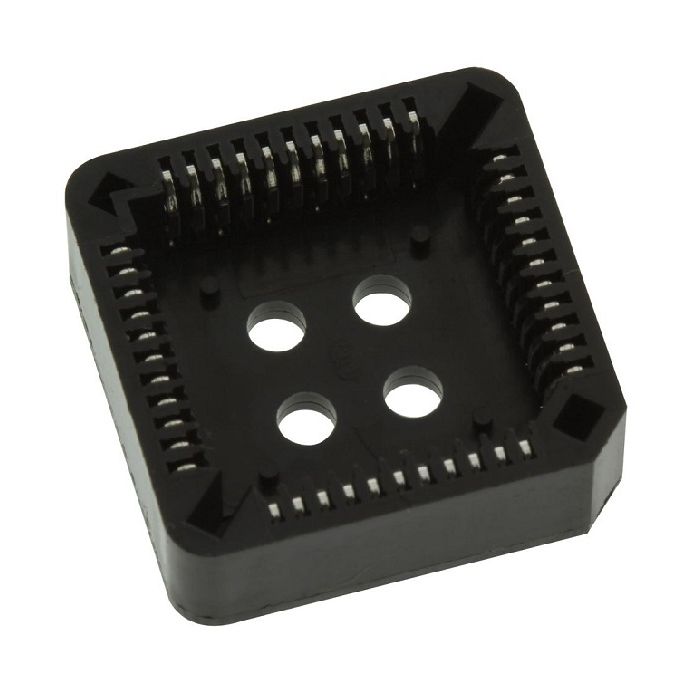

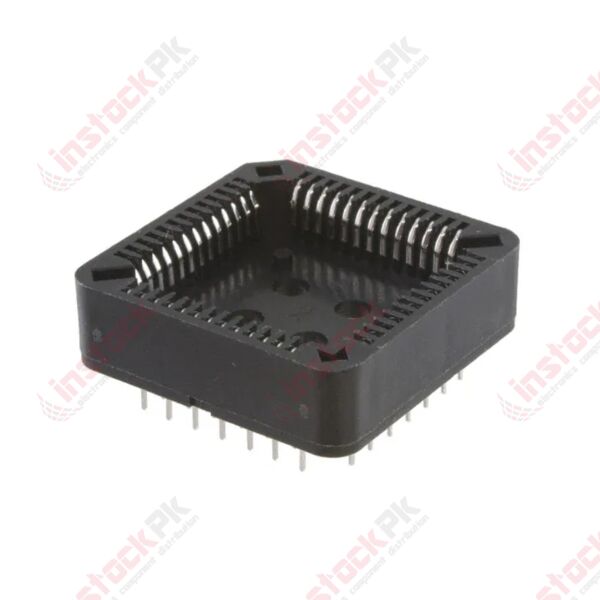

Multicomp: IC Component PLCC Socket, 52 Contacts, 2.54mm, Phosphor Bronze - MC-52PLCC
SKU
BS-02037
PKR 380.00
⚡ Real-Time Stock:
148 Units
✔ In Stock & Ready to Ship
- Buy 3 for PKR 361.00 each and save 5%
- Buy 10 for PKR 349.60 each and save 8%
- Buy 50 for PKR 323.00 each and save 15%
Categories: Integrated Circuit, Enclosure Box
Product Overview
The MC-52PLCC from Multicomp is a 2.54mm pitch PLCC socket with 52 contacts.
- UL94 V-0 rated polyphenylene sulfide glass reinforced insulator
- Phosphor bronze contacts
- Maximum operating voltage is 250VAC
- Maximum current rating is 1A
- Operating temperature range from -55°C to 105°C
- Multicomp products are rated 4.6 out of 5 stars
Applications
Industrial
Product Information
|
|
|
PLCC Socket |
| SMD IC Pitch | 1.27mm |
| DIP Pitch Spacing: | 2.54mm |
| Dimensions: (LxWxH) |
25.7 x 25.7 x 8.3
|
| Contact Material | Phosphor Bronze |
| Contact Plating: | Tin Plated Contacts |
| Part Number | MC-52PLCC |
|---|---|
| Manufacturer | Multicomp |
| Weight (KG) | 0.010000 |
| Packing Unit | 1 Piece |
| Custom tariff number | 8536.9040 |
| Product Availability | In Stock |
