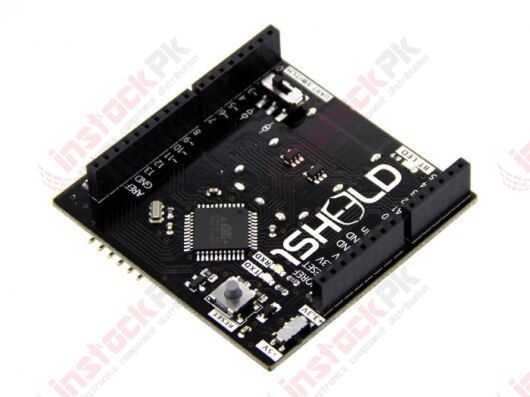

Multi-Purpose 1Sheeld For Arduino / Android Smartphone

Multi-Purpose 1Sheeld for Arduino/Android Smartphone is a new easily configured shield for Arduino. It is connected to a mobile app that allow the usage of all of Android smartphones\' capabilities such as LCD Screen, Gyroscope, Switches, LEDs, Accelerometer, Magnetometer, GSM, Wi-Fi, GPS …etc. into your Arduino sketch.

Basically, it consists of two parts. The first part is a shield that is physically connected to your Arduino board and acts as a wireless middle-man, piping data between Arduino and any Android smartphone via Bluetooth. The second part is a software platform and app on Android smartphones that manages the communication between our shield and your smartphone and let your choose between different available shields.

FEATURES:

1. It uses a standard HC-06 adapter (Bluetooth 2.0)
2. Has a range up to 30 feet
3. Runs on an ATmega162
4. Has a 16 MHz operating frequency
5. Uses a modified version of the Firmata protocol
6. Can communicate with Arduino using UART
7. Has a 50mA current draw

RELATED DOCUMENTS:

1. 1Sheeld Android APP
2. 1Sheeld Library
3. 1Sheeld Documentation
4. 1Sheeld Tutorials

PACKAGE INCLUDES:

1. 1 X Multi-Purpose 1Sheeld For Arduino/Android Smartphone
