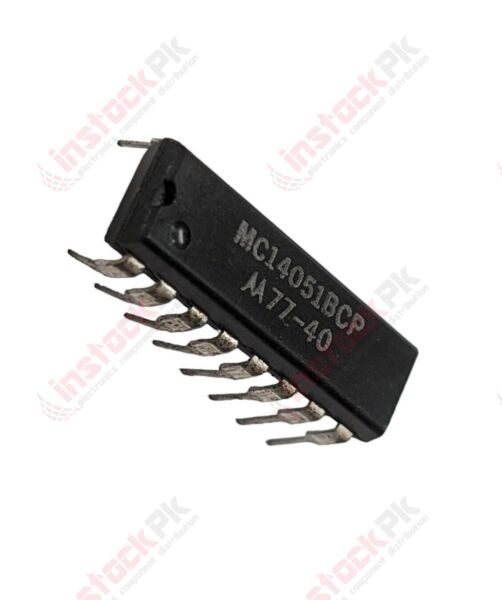

Motorola: MC14051BCP Analog Multiplexer / Demultiplexer IC (8-Channel, PDIP-16)
SKU
MD-02336
Special Price
PKR 80.00
was
PKR 150.00
High-performance, digitally-controlled 8-channel analog multiplexer/demultiplexer IC in a standard 16-pin PDIP through-hole package. Ideal for microcontroller analog pin expansion (ADC), signal routing, and automated test equipment.
⚡ Real-Time Stock:
250 Units
✔ In Stock & Ready to Ship
Categories: Integrated Circuit, Other
The MC14051BCP is a versatile, digitally-controlled analog switch implementing a 1-of-8 configuration (SP8T) belonging to the standard CMOS 4000 logic series. This component effectively behaves like a solid-state rotary switch, connecting a single common input/output terminal to any one of eight independent channel paths based on a 3-bit binary selection code (Address lines A, B, C).
Featuring wide operating voltage support and an Inhibit (INH) control pin for easy device packages cascading, it provides low-loss bi-directional paths for both digital and analog signals. The PDIP-16 layout ensures straightforward prototyping on breadboards or traditional through-hole PCB assembly lines. [1, 2]
Technical Specifications (For Attribute Grid)
| Attribute | Specification Value |
|---|---|
| Logic Function | Multiplexer / Demultiplexer (MUX / DEMUX) |
| Number of Channels | 8-Channel (8:1 Configuration) |
| Operating Supply Voltage | 3.0 V to 18 V |
| Switch Architecture | Bi-directional (Signals flow both ways) |
| Package Dimensions | Standard 16-Pin DIP (Through-Hole) |
| Control Inputs | 3-Bit Binary Selection (A, B, C) + Inhibit (INH) |
| Technology | Buffered CMOS B-Series |
| RoHS Status | RoHS Compliant / Lead-Free Available |
Key Applications to Highlight
- Microcontroller Pin Multiplexing: Expanding a single Arduino/ESP32 ADC pin to sample 8 individual analog sensors.
- Audio Source Selection: Digital routing of stereo signals and inputs in audio mixers or audio processing hardware.
- Instrumentation Equipment: Automated point-switching configurations inside multimeters and logging devices.
- Programmable Gain Circuits: Dynamically toggling fixed resistors across operational amplifier feedback paths.
| Part Number | MC14051BCP |
|---|---|
| Manufacturer | Motorolla |
| Weight (KG) | 0.010000 |
| Material | NA |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
