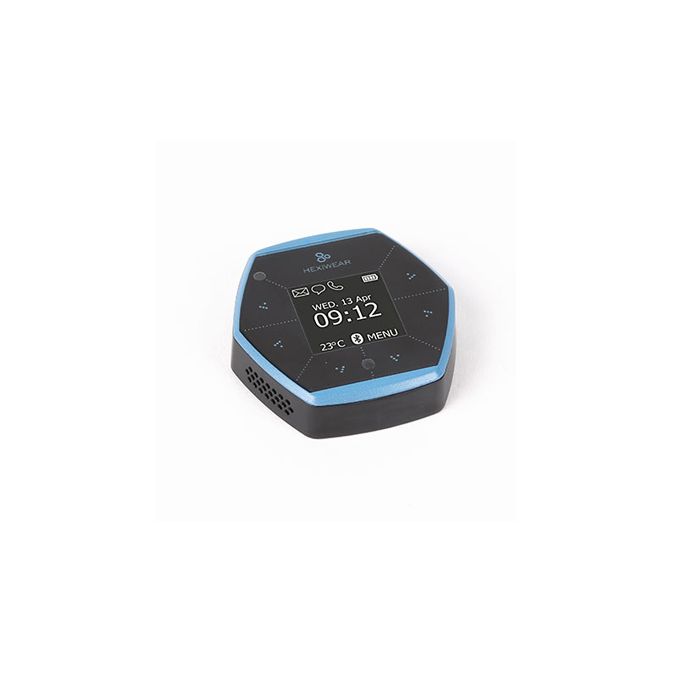

MikroElektronika Hexiwear Wearable Development Kit

MikroElektronika Hexiwear Wearable Development Kit can be used to create prototypes like a smartwatch, remote sensor tag or smarthome controller. This do-anything device is compact with high-end style and usability.

MikroElektronika has teamed up with NXP to power the Hexiwear with the NXP Kinetis K64 32-bit ARM Cortex-M4 MCU. The Kinetis KW4x Arm Cortex-MO+ BLE MCU provides connectivity and multiple on-board NXP sensors are included. This expandable board is packed with a 3D accelerometer and magnetometer, 3-axis digital gyroscope, pressure sensor and 600mA battery charger. Functionality can be expanded with the docking station and the ever-growing line of click boards.

The Hexiwear has a capacitive touch interface 1.1" full-color OLED display. Applications for Android and iOS are available from the Google Play or App Store. The app connects the device to the cloud with no need for additional software development. Hexiwear uses FreeRTOS, the Kinetis software development kit (SDK) and the Kinetis Design Studio IDE.

FEATURES:

1. Eye-catching smartwatch form factor with powerful, low power Kinetis K64 MCU and and 6 on-board sensors.
2. Designed for wearable applications with the onboard rechargeable battery, OLED screen and onboard sensors like optical heart rate, accelerometer, magnetometer and gyroscope.
3. Designed for IoT end node applications with the onboard sensors like temperature, pressure, humidity and ambient light
4. Complete software solution with open source embedded software, cell phone apps and cloud connectivity. Add nearly 200 additional sensors through click boards.

SPECIFICATIONS:

1. MCU: Kinetis K64 32-bit ARM® Cortex®-M4 MCU, 120 MHz, 1M Flash, 256K SRAM)
2. BLE: Kinetis KW4x ARM® Cortex®-M0+ MCU, Bluetooth Low Energy & 802.15.4 Wireless
3. 3D Accelerometer and 3D Magnetometer: NXP FXOS8700CQ
4. 3-Axis Digital Gyroscope: NXP FXAS21002
5. Absolute Digital Pressure sensor: NXP MPL3115A2R1
6. 600 mA Single-cell Li-Ion/Li-Polymer Battery Charger: NXP MC34671
7. Light-to-digital converter: TAOS TSL2561
8. Digital humidity and temperature sensor: Measurement Specialties HTU21D
9. Heart-rate sensor: Maxim's MAX30101
10. 1.1" full color OLED display
11. Haptic feedback engine
12. 190mAh 2C Li-Po battery
13. Capacitive touch interface
14. RGB LED
15. 8MB of additional Flash memory

INTERNAL DIAGRAM:

RELATED VIDEO:

PACKAGE INCLUDES:

1. 1 X MikroElektronika Hexiwear Wearable Development Kit
