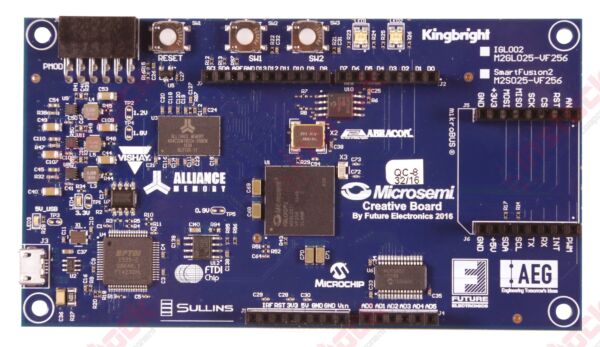

Microsemi: SmartFusion2 Creative Development Board
SKU
MD-01537
PKR25,175.00
Quantity: 0
The Future-designed Creative Development Board, featuring Microsemi's SmartFusion2 SoC FPGA and Microsemi's LX series power devices. The Future - Microsemi Creative Development Board boasts a 25K logic element (LE) FPGA, offering the lowest cost of entry for both software and hardware engineers who want to evaluate and implement their own unique designs.
Category: Development Boards
Features
- Microsemi SmartFusion2 SoC FPGA (M2S025)
- Microsemi LX7167CLD DC/DC
- Alliance 32M x 16 bit DDR2 synchronous DRAM (SDRAM)
- Microchip 64Mbit serial flash
- Microchip six synchronous sampling 16/24-bit resolution Delta-Sigma A/D converters
- On-board FTDI USB-JTAG adaptor
- Arduino™ compatible expansion headers
- MikroBUS™ compatible expansion headers
- PMOD™ compatible expansion connector
- Users buttons and LED
| Part Number | FUTUREM2SF-EVB |
|---|---|
| Weight (KG) | 0.100000 |
| Manufacturer | Microsemi Corporation |
| Voltage (V) | NA |
| Power | NA |
| Frequency | NA |
| Memory | NA |
| Operating System | Andriod |
| Temperature Range (Min) | NA |
| Temperature Range (Max) | NA |
| Bluetooth Interface | No |
| Interface | NA |
