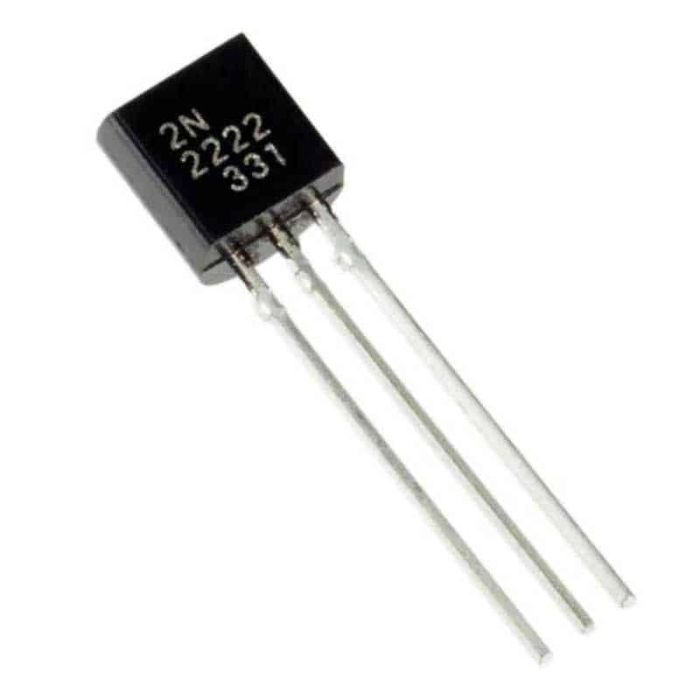

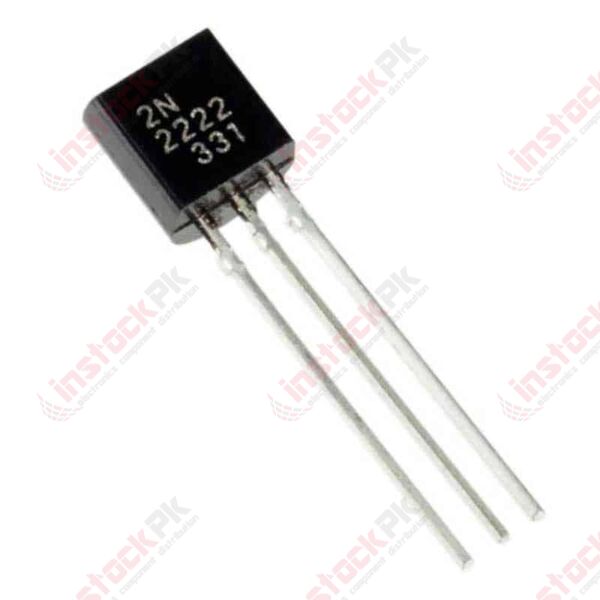

Small Signal BJT 2N2222A
SKU
MD-01112
PKRĀ 28.00
2N2222A Microsemi Bipolar Transistors - BJT Small-Signal BJT datasheet, inventory, & pricing.
š¦ Pre-Order Queue:
0 Units
ā Available on Backorder (In 15-30 business days)
- Buy 10 for PKRĀ 26.60 each and save 5%
- Buy 50 for PKRĀ 25.76 each and save 8%
- Buy 100 for PKRĀ 25.20 each and save 10%
- Buy 500 for PKRĀ 21.84 each and save 22%
Category: Transisters
| Product Category: | Bipolar Transistors - BJT | |
| Manufacturer: | Microsemi | |
| RoHS: | No | |
| Technology: | Si | |
| Mounting Style: | Through Hole | |
| Package / Case: | TO-18-3 | |
| Transistor Polarity: | NPN | |
| Configuration: | Single | |
| Collector- Emitter Voltage VCEO Max: | 50 V | |
| Collector- Base Voltage VCBO: | 75 V | |
| Emitter- Base Voltage VEBO: | 6 V | |
| Collector-Emitter Saturation Voltage: | 300 mV | |
| Maximum Operating Temperature: | + 200 C | |
| Brand: | Microsemi | |
| Continuous Collector Current: | 800 mA | |
| DC Collector/Base Gain hfe Min: | 75 at 1 mA at 10 VDC | |
| DC Current Gain hFE Max: | 325 at 1 mA at 10 VDC | |
| Minimum Operating Temperature: | - 65 C | |
| Packaging: | Reel | |
| Pd - Power Dissipation: | 500 mW (1/2 W) | |
| Factory Pack Quantity: | 1 |
| Part Number | 2N2222A |
|---|---|
| Manufacturer | Made in China |
| Product Availability | In Stock |
| Weight (KG) | 0.010000 |
