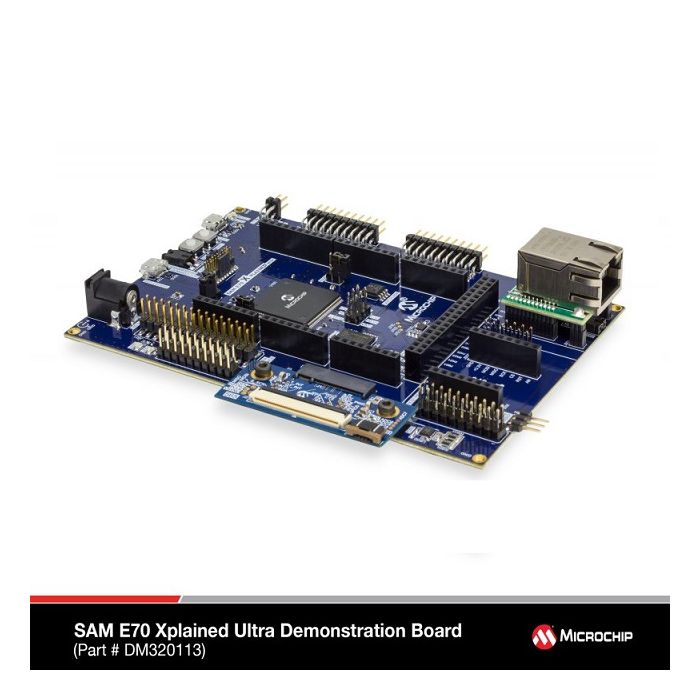

MicroChip: SAM E70 XPLAINED Ultra Evaluation Kit ATSAME70-XULT - DM320113

Quantity: 0
The SAM E70 Xplained Ultra Evaluation Kit is a hardware platform for evaluating the ATSAME70 and ATSAMS70 families of microcontrollers (MCU). It is supported by our free-to-use MPLAB® Harmony v3-embedded software development framework, running in MPLAB® X Integrated Development Environment (IDE). The evaluation kit provide easy access to the features of the ATSAME70 and is a valuable assistant when integrating the device into a custom design.

The Xplained Ultra MCU series evaluation kits include an on-board Embedded Debugger, eliminating the need for external tools to program or debug the ATSAME70. The kit offers additional peripherals to extend the features of the board and ease the development of custom designs.

ATSAME70Q21B Microcontroller

  • Cortex –M7
  • Max Speed: 300MHz
  • Flash: 2048KB
  • RAM: 384KB


  • QSPI: 32Mbit (4MB)
  • External SDRAM: 16Mbit (2MB)
  • Serial EEPROM w/MAC address


  • Arduino Mega interface
  • X32+ Mirko interface
  • Modular Ethernet interface (RMII + SPI)
  • Modular Graphics interface
  • Image Sensor Interface Headers (ISI)
  • EXT1/2
  • On board debugger (EBDG + DGI interface)
  • CAN interface
  • Micro SD Card interface
  • 1 User button
  • 1 User LED
  • 5-14V input compatible
Part Number DM320113 || ATSAME70-XULT
Manufacturer Microchip
Weight (KG) 0.100000
Packing Unit 1pc
Product Availability Available on Demand
