Microchip: ARM AVR Emulator Debugger Programmer - ATATMEL-ICE
SKU
MD-01804
Categories: Development Boards, Arduino Programmer, FPGA Programmer
Overview
Atmel-ICE is a powerful development tool for debugging and programming ARM® Cortex®-M based SAM and AVR microcontrollers with on-chip debug capability.Atmel-ICE supports:
- Programming and on-chip debugging of all AVR 32-bit MCUs on both JTAG and aWire interfaces
- Programming and on-chip debugging of all AVR XMEGA family devices on both JTAG and PDI 2-wire interfaces
- JTAG and SPI programming and debugging of all AVR 8-bit MCUs with OCD support on either JTAG or debugWIRE interfaces
- Programming and debugging of all SAM ARM Cortex-M based MCUs on both SWD and JTAG interfaces
- Programming of all tinyAVR 8-bit MCUs with support for the TPI interface
- Programming and debugging of all AVR 8-bit MCUs with UPDI
For more information, please visit the Online User Guide.
- Supports JTAG, SWD, PDI, TPI, aWire, SPI, debugWIRE and UPDI interfaces
- Full source-level debugging in Atmel Studio
- Supports all built-in hardware breakpoints in the target microcontroller (number depends on the OCD module in the target)
- Up to 128 software breakpoints
- 1.62 to 5.5V target operation
- USB powered
- Provides both ARM Cortex Debug Connector (10-pin) pin-out and AVR JTAG connector pin-out

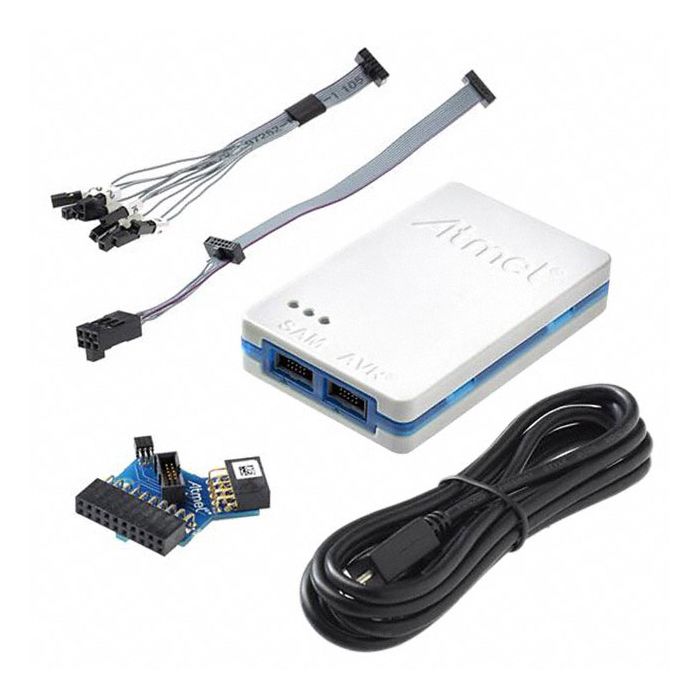

Package Contents
- Encapsulated main unit
- USB cable
- 10-lead squid cable
- Flat cable (10-pin 50mil connector and 6-pin 100mil connector)
- Adapter board (20-pin 100mil connector, 6-pin 50mil connector and 10-pin 100mil connector)
| Part Number | ATATMEL-ICE |
|---|---|
| Manufacturer | Microchip |
| Weight (KG) | 0.100000 |
| Packing Unit | 1 Piece |
| Product Availability | Available on Demand |
