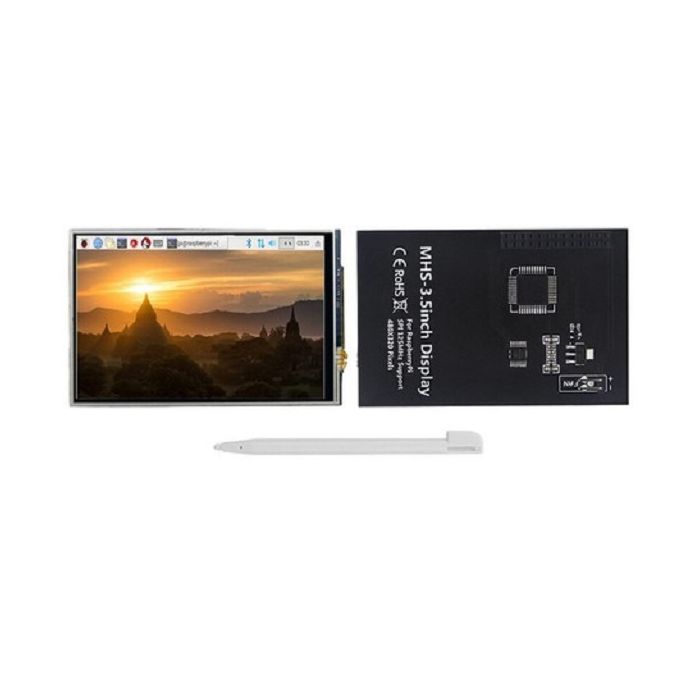

MHS: Color Touch TFT LCD Screen 3.5" 480x320 with Fan Connector For Raspberry Pi

Quantity: 3

Product Features

  • Physical resolution 320 x 480, with resistive touch control
  • It supports up to 125MHz SPI signal input, showing stable no screen and no flicker
  • With the refresh rate of raspberry pie around 50Hz, play video to play the game without pressure
  • Support FBCP software drive, support double screen display, can adjust the resolution of the software to zoom
  • Same size as the Raspberry Pi, perfectly compatible and can be directly inserted into any version of the Raspberry Pi (Raspberry Pi ZeroW, A, A+, B, B+, 2B, 3B, 3B+,4B)
  • Support Raspbian/Ubuntu/Kali system, provide driver and image
  • This product has passed CE and RoHS certification

Main Parameters

Name Description
Screen Size 3.5inch
Module Interface SPI (upports up to 125MHz SPI input)
Resolution 320*480 (Pixel)
Touch Screen Controller XPT2046
LCD Driver IC ILI9486
Backlight LED
power consumption 0.16A*5V
Working temperature(℃) -20~60
Active Area 48.96x73.44(mm)
Module PCB Size 85.42*55.60 (mm)
Package Size 136x98x41 (mm)
Product Weight(Package containing)(g) 92 (g)

Hardware Description


  • Interface Definition
1, 17 3.3V Power positive (3.3V power input)
2, 4 5V Power positive (5V power input)
3, 5, 7, 8, 10, 12, 13, 15, 16 NC NC
6, 9, 14, 20, 25 GND Power ground
11 TP_IRQ The touch panel is interrupted, and it is detected that the touch panel is pressed low
18 LCD_RS Instruction/data register selection, low level is instruction, high level is data
19 LCD_SI / TP_SI LCD display / touch panel SPI data input
21 TP_SO Touch panel SPI data output
22 RST Reset signal, low reset
23 LCD_SCK / TP_SCK LCD display / touch panel SPI clock signal
24 LCD_CS LCD chip select signal, low level enable
26 TP_CS Touch panel chip select signal, low level enable
  • Product Size


Part Number MHS-3.5inch-320-480
Weight (KG) 0.050000
Packing Unit 1 Piece
Product Availability In Stock
