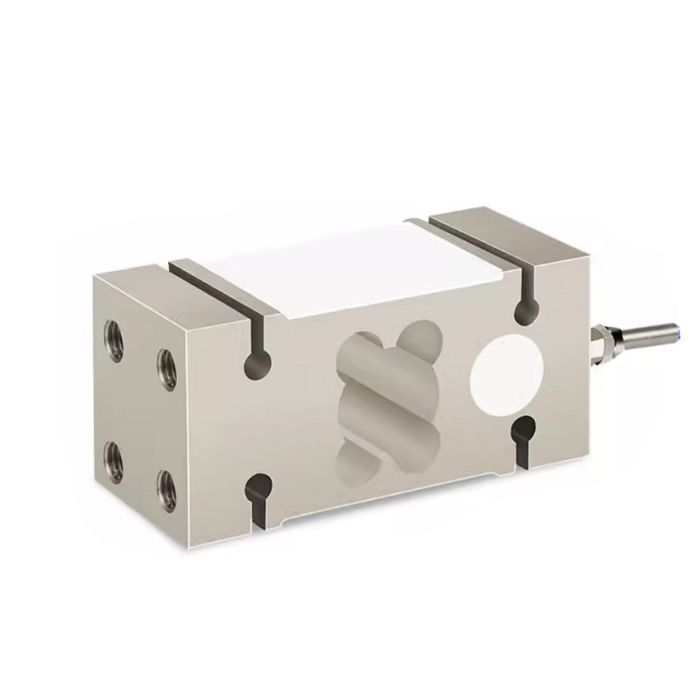

Mettler Toledo: Single Point Load Cell for Big Platofrm IL-150KG 2.5M - 72214257
A high performance single point load cell. Load cell is off-center compensated thus copes with platform moments. Metrology approvals include OIML as standard.
The IL is the ideal solution for hopper and bin weighing due to high capacities and large possible platform sizes. The mounting schema allows for direct bolting to a wall. The variety of capacities allows for wide application range.
Reliable Strain Gage Technology
Usage of best steel materials & SG technology guarantee long term durability. Suitable for all but the harshest environments & conditions.
The IL load cell features:
- OIML R60 C3 approved
- Off-center load compensated (R76)
- Up to 1000x1000 mm platform size
- IP67 protection class
- Nickel plated steel
Specifications - Load Cell IL-150kg 2.5m
| Connectivity | Analog |
| Maximum Capacity | 330 lb (150 kg) |
| Metrology | OIML C3 |
| Cable | 8.3 ft (2.5 m) |
| Protection Rating | IP67 |
| Material | Alloy steel, nickel plated |
| Platform Size (LxW) | 800 mm x 800 mm |
Applications:
Tank and Hoppers
IL provides the best weighing performance for smaller tanks and wall mounted hoppers. Due to its mounting schema it can be easily used for general bin weighing as well.
Off-Center Compensation
One load cell can be used to support a weighing platform and, due to the off-center load compensation, the IL will weigh within tolerance regardless of load application point.
High Robustness
IL allows for 50% static overload without compromising the weighing performance. The nickel plated steel material provides good corrosion resistance suitable for most industrial applications.
Download Datasheet
| Part Number | IL-150KG 2.5M 72214257 |
|---|---|
| Manufacturer | Mettler Toledo |
| Weight (KG) | 4.500000 |
| Packing Unit | 1 Piece |
