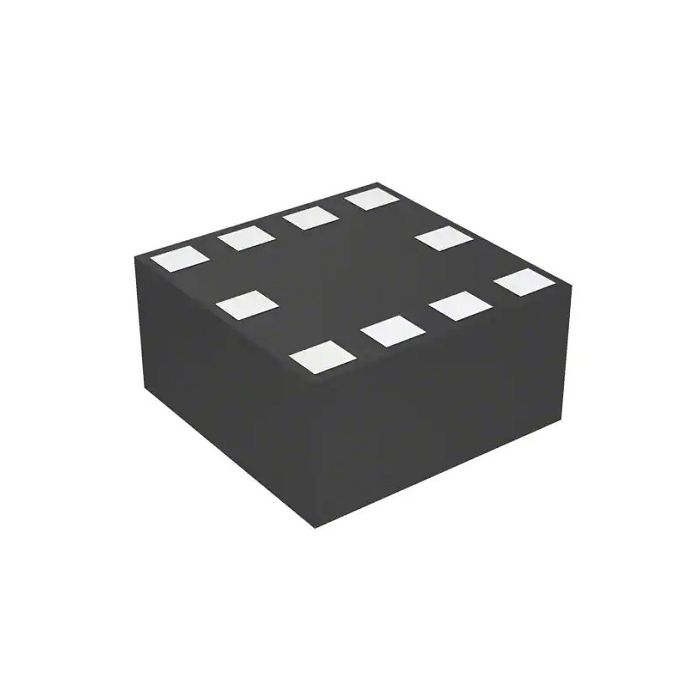

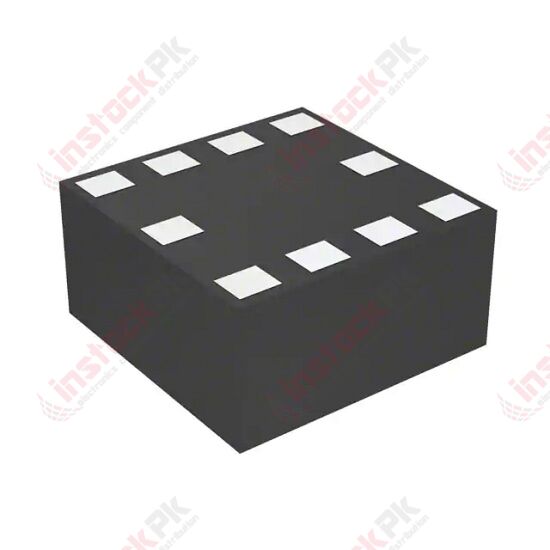

MEMSIC: Hall Effect 3-Axis Magnetic Sensor I2C 10LGA - MMC33160MT
SKU
MD-01730
PKR 1,250.00
Board Mount Hall Effect/Magnetic Sensors 16 Gauss 3-axis Magnetic Sensor, With I2C Interface
🔥 High Demand Allocation:
5 Units
⚠️ Limited Quantity Remaining
- Buy 3 for PKR 1,187.50 each and save 5%
Categories: Accelerometer/Gyrometer Sensors, Environmental Sensors, Other
|
Technology
|
Magnetoresistive
|
|
|
Axis
|
X, Y, Z
|
|
|
Output Type
|
I²C
|
|
|
Sensing Range
|
±1.6mT
|
|
|
Voltage - Supply
|
1.62V ~ 3.6V
|
|
|
Current - Supply (Max)
|
160µA
|
|
|
Current - Output (Max)
|
-
|
|
|
Resolution
|
14 b
|
|
|
Bandwidth
|
100Hz
|
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
|
Features
|
Sleep Mode, Temperature Compensated
|
|
|
Supplier Device Package
|
10-LGA (2x2)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Package / Case
|
10-VFLGA
|
| Part Number | MMC33160MT |
|---|---|
| Manufacturer | Memsic Inc |
| Weight (KG) | 0.001000 |
| Product Availability | Available on Demand |
