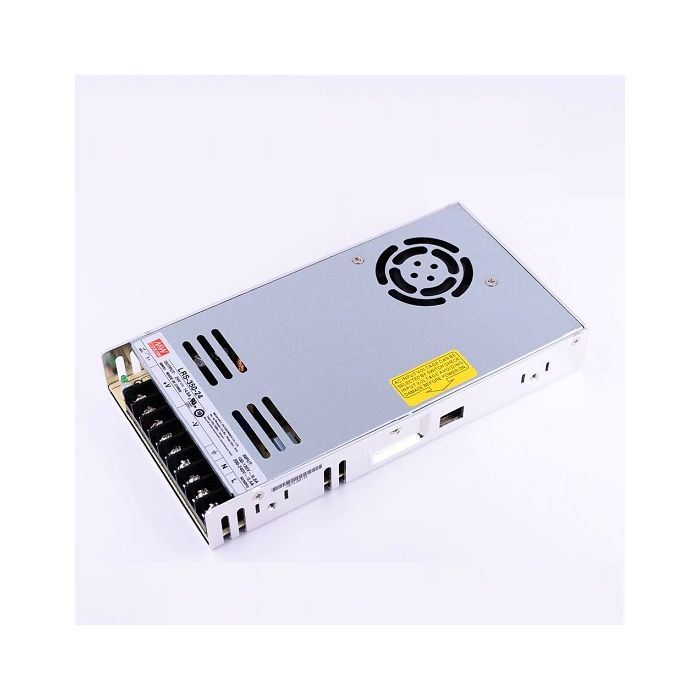

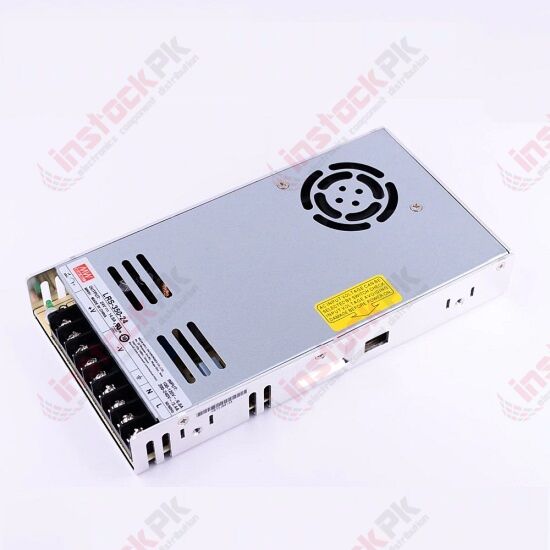

Meanwell: Switching Power Supply 350W 24V - LRS-350-24
SKU
MD01661
PKR15,500.00
Quantity: 0
- Buy 3 for PKR15,035.00 each and save 3%
- Buy 10 for PKR14,725.00 each and save 5%
- Buy 25 for PKR14,260.00 each and save 8%
Categories: Power Supplies, Power Supply
Enclosed AC DC Converter 1 Output 24V 14.6A 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC Input. It has a rated power of 350.4W and can work up to 70°C temperature. Dimensions are Width 115 mm, Height 30 mm, and Depth 215 mm.
| MEAN WELL | ||
| Switching Power Supplies | ||
| RoHS: | Details | |
| 24 VDC | ||
| 1 Output | ||
| 350.4 W | ||
| Enclosed | ||
| 90 VAC to 132 VAC, 180 VAC to 264 VAC, 240 VDC to 370 VDC | ||
| 14.6 A | ||
| Industrial | ||
| Chassis | ||
| 215 mm | ||
| 115 mm | ||
| 30 mm | ||
| LRS-350 | ||
| Approvals: | UL60950-1 | |
| Input Frequency: | 47 Hz to 63 Hz | |
| Isolation Voltage: | 3 kV | |
| Brand: | MEAN WELL | |
| Compliance: | UL60950-1 | |
| Load Regulation: | Regulated | |
| Product Type: | Switching Power Supplies | |
| Factory Pack Quantity: | 15 | |
| Subcategory: | AC-DC Power Supply | |
| Unit Weight: | 1.676 lbs |
| Part Number | LRS-350-24 |
|---|---|
| Manufacturer | Mean Well |
| Weight (KG) | 0.800000 |
| Product Availability | In Stock |
| Voltage (V) | NA |
| Output Voltage | NA |
| Output Impedance | NA |
| Power | NA |
| Temperature Range (Max) | NA |
| Temperature Range (Min) | NA |
