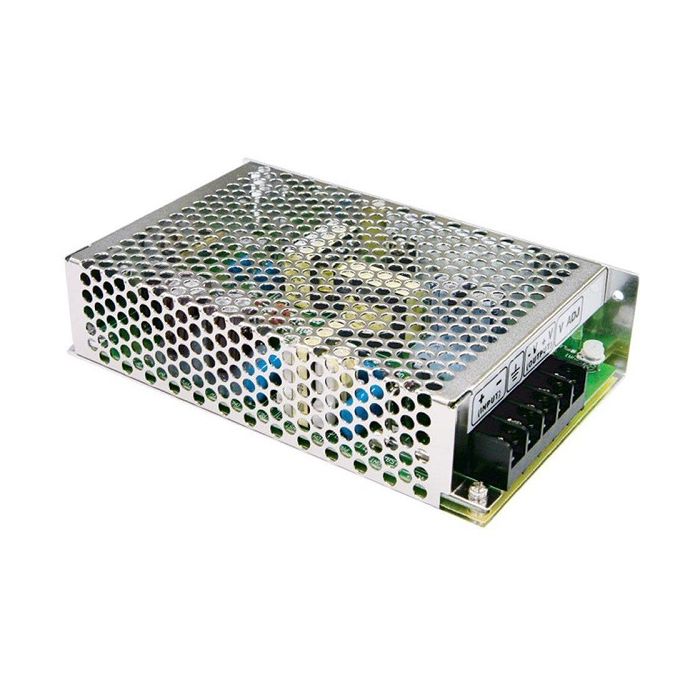

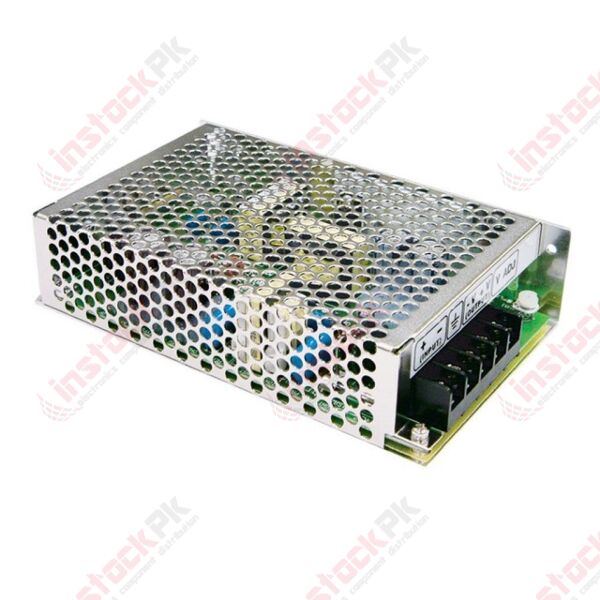

Meanwell: DC-DC Enclosed Converter; Power Supply Input 36-72Vdc; Output +24Vdc at 2.1A - SD-50C-24
PKR 10,800.00
Only 2 left
SKU
MD-01931
- Buy 10 for PKR 10,260.00 each and save 5%
- Buy 25 for PKR 9,936.00 each and save 8%
DC-DC Enclosed converter; Input 36-72Vdc; Output +24Vdc at 2.1A; Free air convection
Specifications
| Technical data | |
|---|---|
|
Brand
|
Mean Well
|
|
Item number
|
SD-50C-24
|
|
Series
|
SD-50
|
|
Description
|
DC-DC Enclosed converter; Input 36-72Vdc; Output +24Vdc at 2.1A; Free air convection
|
|
Technology
|
DC/DC
|
|
Power Format
|
Box Type - Enclosed
|
|
Output Power (W)
|
50
|
|
Output Voltage (V)
|
24
|
|
Output Current (A)
|
2.1
|
|
Input Voltage (V)
|
36 - 72
|
|
IP Rating
|
No IP assigned
|
|
Width (mm)
|
97
|
|
Height (mm)
|
38
|
|
Depth (mm)
|
159
|
|
Dimming Technology
|
No Dimming
|
| Information | |
|---|---|
|
Commodity
|
8504409090
|
|
Warranty pack
|
24 Months Bring-In
|
|
RoHS
|
Compliant
|
|
Packing quantity
|
24
|
|
Net weight (gram)
|
460
|
| Part Number | SD-50C-24 |
|---|---|
| Manufacturer | Mean Well |
| Weight (KG) | 0.450000 |
| Packing Unit | 1 Piece |
| Custom tariff number | 8504409090 |
| Product Availability | In Stock |
| Voltage (V) | NA |
| Output Voltage | NA |
| Output Impedance | NA |
| Power | NA |
| Temperature Range (Max) | NA |
| Temperature Range (Min) | NA |
