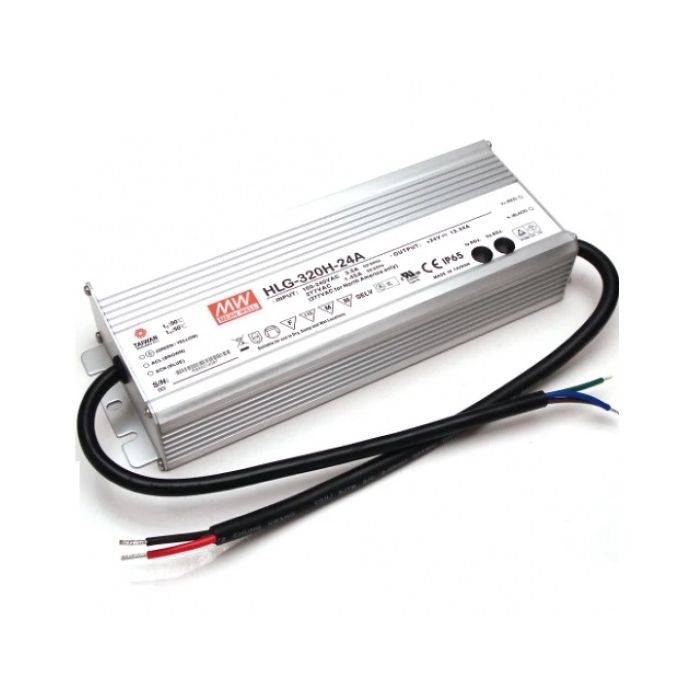

Meanwell: AC-DC Switching LED Power Supply IP65 100-240VAC 3.5A; To 24VDC; 13.34A; 320W; - HLG-320H-24A
SKU
MD-02231
PKR29,500.00
Quantity: 1
AC-DC Single output LED driver Mix mode (CV+CC) with built-in PFC; Output 24Vdc at 13.34A; IP65; Cable output; Dimming with Potentiometer
- Buy 3 for PKR28,025.00 each and save 5%
- Buy 10 for PKR27,140.00 each and save 8%
Categories: Power Module, Power Supply, Power Modules
Specifications
| Technical data | |
|---|---|
|
Brand
|
MEAN WELL
|
|
Item number
|
HLG-320H-24A
|
|
Series
|
HLG-320H
|
|
Description
|
AC-DC Single output LED driver Mix mode (CV+CC) with built-in PFC; Output 24Vdc at 13.34A; IP65; Cable output; Dimming with Potentiometer
|
|
Application
|
LED EN 61347
|
|
Technology
|
AC/DC
Constant Current C.C.
Constant Power C.P.
Constant Voltage C.V.
|
|
Power Format
|
Box Type - Enclosed
Enclosed Metal housing
|
|
Output Power (W)
|
320
|
|
Output Voltage (V)
|
24
|
|
Output Current (A)
|
13.34
|
|
Input Voltage (V)
|
110/230 universal input
90 - 305
|
|
IP Rating
|
IP65
|
|
Width (mm)
|
128
|
|
Height (mm)
|
62
|
|
Depth (mm)
|
338
|
|
Control Signals
|
Potentiometer
|
|
Dimming Technology
|
Analog
Potentiometer
|
|
Housing Type
|
Metal
|
| Part Number | HLG-320H-24A |
|---|---|
| Manufacturer | Mean Well |
| Weight (KG) | 2.000000 |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
