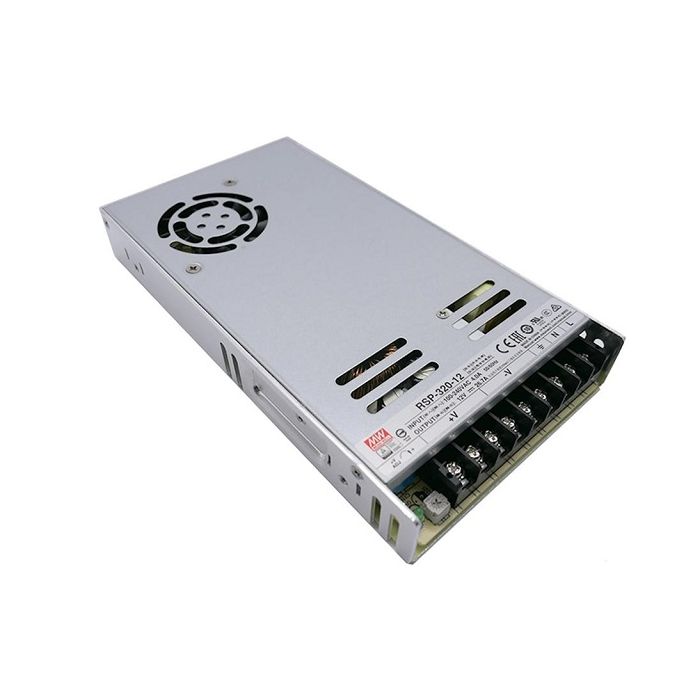

Meanwell: AC-DC Single Output Enclosed Power Supply; 12VDC; 26.7A; PFC; Forced Air Cooling; RSP-320-12
PKR 17,700.00
Only 5 left
SKU
MD-01963
AC-DC Single Output Enclosed power supply; Output 12VDC Single Output at 26.7A; PFC; forced air cooling; 1U low profile
Specifications
| Technical data | |||
|---|---|---|---|
|
Brand
|
Mean Well
|
||
|
Item number
|
RSP-320-12
|
||
|
Series
|
RSP-320
|
||
|
Description
|
AC-DC Single Output Enclosed power supply; Output 24VDC Single Output at 26.7A; PFC; forced air cooling; 1U low profile
|
||
|
Application
|
ITE EN/UL/IEC 60950
|
||
|
Technology
|
AC/DC
|
||
|
Power Format
|
Box Type - Enclosed
|
||
|
Output Power (W)
|
320
|
||
|
Output Voltage (V)
|
12
|
||
|
Output Current (A)
|
26.7
|
||
|
Input Voltage (V)
|
110/230 universal input
88 - 264
|
||
|
IP Rating
|
No IP assigned
|
||
|
Width (mm)
|
115
|
||
|
Height (mm)
|
30
|
||
|
Depth (mm)
|
215
|
||
|
Weight
|
860 gram
|
||
| Part Number | RSP-320-12 |
|---|---|
| Manufacturer | Mean Well |
| Weight (KG) | 0.860000 |
| Packing Unit | 1 Piece |
| Custom tariff number | 8504409090 |
| Product Availability | In Stock |
| Voltage (V) | NA |
| Output Voltage | NA |
| Output Impedance | NA |
| Power | NA |
| Temperature Range (Max) | NA |
| Temperature Range (Min) | NA |
