Maxim: Medical Pulse Oximeter (PO or SpO2) Evaluation Board - MAX30102ACCEVKIT#

Quantity: 0

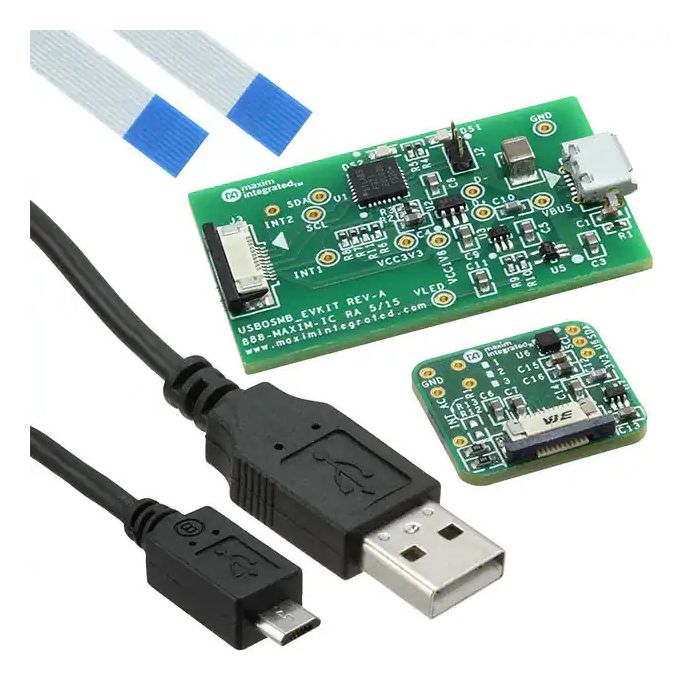

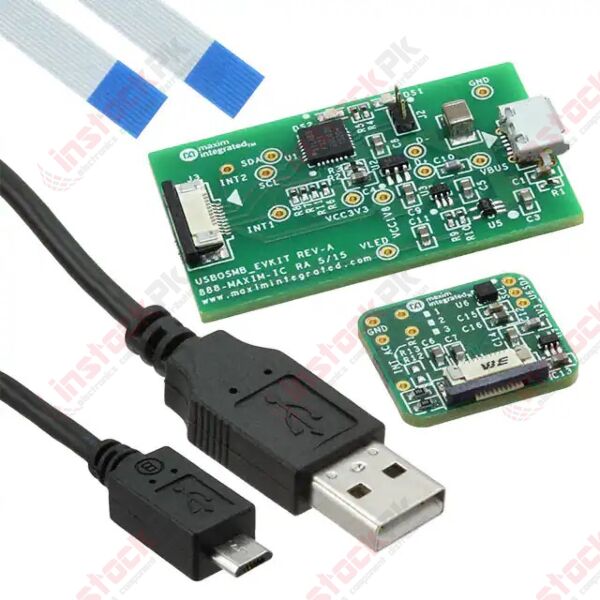

The MAX30102 evaluation kit (EV kit) provides a proven design to evaluate the MAX30102 integrated pulse-oximetry and heart-rate monitor integrated circuit (IC). The EV kit consist of two boards. USBOSMB is the mother board and MAX30102DBEVKIT is the daughter board that includes the MAX30102 and an accelerometer. The EV kit is powered using the USB supply to generate +1.8V for the sensor and +4.5V for the internal LEDs of the MAX30102, and +3.3V for the accelerometer.

The EV kit comes with a MAX30102EFD+ installed in a 14-pin OESIP package.

Part Number MAX30102ACCEVKIT#
Manufacturer Maxim Integrated
Weight (KG) 0.100000
Packing Unit 1pc
Product Availability Available on Demand
