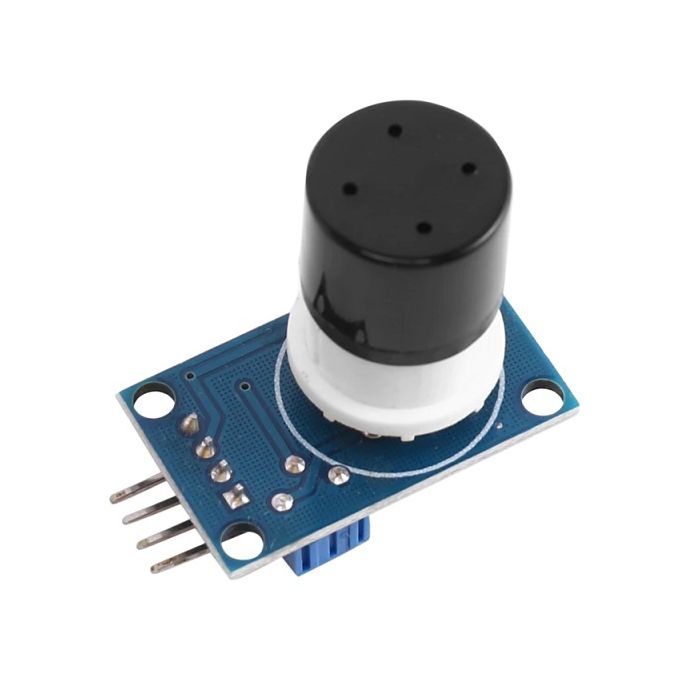

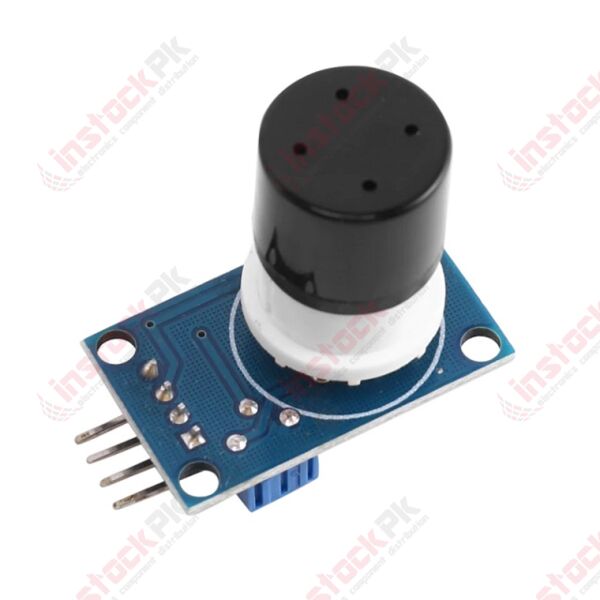

Low Concentration Ozone Gas Detection Sensor Module - MQ131

SKU
MD-01897
PKR3,950.00
Quantity: 35
The MQ-131 is a low concentration Ozone gas sensor from Winsen. The sensing material for the MQ-131 is WO₃. It will have lower conductivity in clean air and higher conductivity when the ozone concentration rises. This sensor has high sensitivity to ozone, and also has sensitivity to strong oxide such as Cl₂, NO₂ &etc. It responses oppositely to organic interference gases. The sensing range is 10 - 1000ppb. A simple circuit makes measuring this change in conductivity and turning it into data fairly straight-forward, but does require some calibration.

The MQ131 ozone gas sensor makes it easy to monitor ozone concentration levels using our I2C Mini Module form factor. The MQ131 is connected to an ADC121C 12-Bit Analog to Digital converter, which is capable expanding to 9 gas sensors per I2C port using just two address jumpers (making full use of the floating address system).

The MQ131 ozone gas sensor is capable of sensing ozone air concentration levels between 10ppm and 1000ppm. The ideal sensing condition for the MQ131 is 20°C ±2°C at 65% ±5% humidity. An internal preheater inside the sensor helps achieve the ideal sensing conditions, but the datasheet recommends over 24 hours for preheating to achieve optimal accuracy. Because of the internal preheater, this sensor requires more current than most of our I2C Mini Modules. We measured 139ma for this I2C Mini Module so we strongly recommend planning a power strategy for your I2C master device to deliver no-less than 150ma per sensor! This sensor comes pre-calibrated to the datasheet’s recommended values; however, final calibration may be required for accurate measurements, as we do not stock the equipment for full-scale calibration of these sensors.

All I2C Mini Modules are designed to operate at 5VDC. Using a convenient 4-Pin plug, devices can be daisy chained onto the I2C Bus, eliminating the need for soldering. Simply plug together the devices you need for your next automation application. Pull-up resistors are included with all NCD master devices. If you are wiring in your own I2C port, on-board 4.7K jumper-selectable pull-up resistors are available for convenience purposes.

Part Number MQ-131
Weight (KG) 0.050000
Product Availability In Stock
