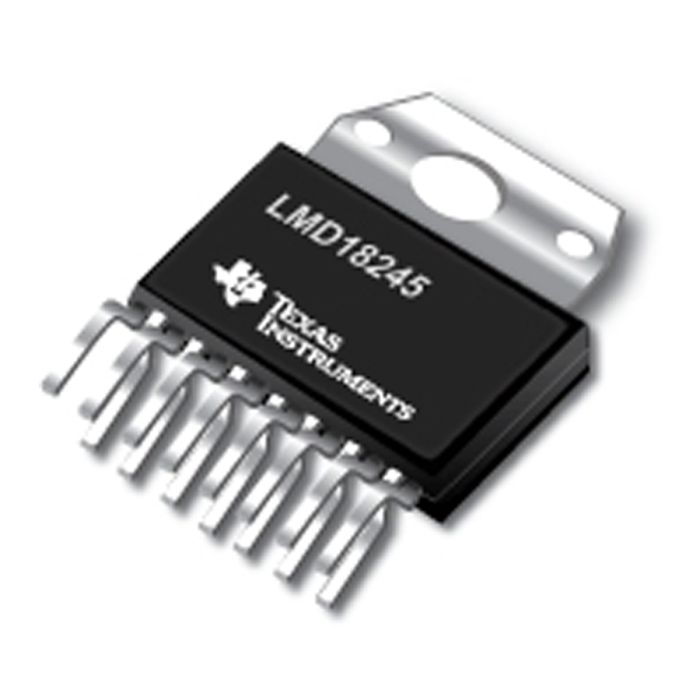

LMD18245 3A, 55V DMOS Full-Bridge Motor Driver
SKU
MD-00097
Special Price
PKR2,500.00
was
PKR3,300.00
Quantity: 0
The LMD18245 full-bridge power amplifier incorporates all the circuit blocks required to drive and control current in a brushed type DC motor or one phase of a bipolar stepper motor.
Categories: Integrated Circuit, Motor Drivers
The LMD18245 full-bridge power amplifier incorporates all the circuit blocks required to drive and control current in a brushed type DC motor or one phase of a bipolar stepper motor. The multi-technology process used to build the device combines bipolar and CMOS control and protection circuitry with DMOS power switches on the same monolithic structure. The LMD18245 controls the motor current via a fixed off-time chopper technique.
Features:
- DMOS Power Stage Rated at 55V and 3A Continuous
- Low RDS(ON) of Typically 0.3Ω per Power Switch
- Internal Clamp Diodes
- Low-loss Current Sensing Method
- Digital or Analog Control of Motor Current
Diagram:
DataSheet here
| Weight (KG) | 0.125000 |
|---|---|
| Manufacturer | Made in China |
| Voltage (Min) | 12v |
| Voltage (Max) | 55 |
| Current (A) | 13m |
| Output Current (A) | 6 |
| Num of Pin's | 15 |
| SMD_Package | DIP |
