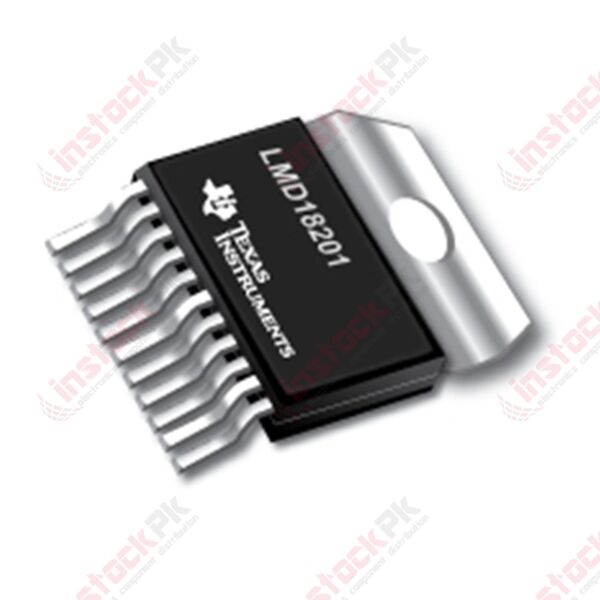

LMD18201 3-Amp, 55 Volt H-Bridge
PKR 3,800.00
SKU
MD-00096
The device is built using a multi-technology process which combines bipolar and CMOS control circuitry with DMOS power devices on the same monolithic structure.
The LMD18201 is a 3A H-Bridge designed for motion control applications. The device is built using a multi-technology process which combines bipolar and CMOS control circuitry with DMOS power devices on the same monolithic structure. The H-Bridge configuration is ideal for driving DC and stepper motors. The LMD18201 accommodates peak output currents up to 6A. Current sensing can be achieved via a small sense resistor connected in series with the power ground lead. For current sensing without disturbing the path of current to the load, the LMD18200 is recommended.
Features:
- Delivers up to 3A Continuous Output
- Operates at Supply Voltages up to 55V
- Low RDS(ON) Typically 0.33Ω per Switch at 3A
- TTL and CMOS Compatible Inputs
- No “Shoot-Through” Current
- Thermal Warning Flag Output at 145°C
- Thermal Shutdown (Outputs Off) at 170°C
- Internal Clamp Diodes
- Shorted Load Protection
- Internal Charge Pump with External Bootstrap Capability
Diagram:
DataSheet here
| Weight (KG) | 0.125000 |
|---|---|
| Manufacturer | Texas Instrument |
| Voltage (Min) | 12v |
| Voltage (Max) | 55 |
| Current (A) | 13m |
| Output Current (A) | 6 |
| Num of Pin's | 11 |
| SMD_Package | DIP |
