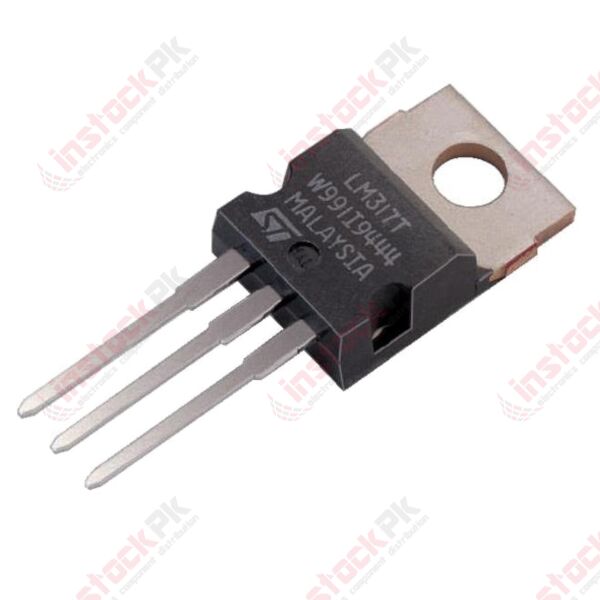

Texas: Adjustable Voltage Regulator IC - LM317T
PKR 190.00
Only 8 left
SKU
IC-00020
The LM117 series of adjustable 3-terminal positive voltage regulators is capable of supplying in excess of 1.5A over a 1.2V to 37V output range.
Specifications:
1) Output Type: Adjustable
2) Output Voltage: 1.2 V to 37 V
3) Output Current: 1.5 A
4) Load Regulation: 0.5 %
5) Input Voltage MAX: 40 V
6) Line Regulation: 0.04 % / V
7) Maximum Operating Temperature: + 125 C
8) Mounting Style: Through Hole
9) Package / Case: TO-220
10) Input Voltage MIN: 4.2 V
11) Minimum Operating Temperature: 0 C
12) Number of Outputs: 1
13) Polarity: Positive
14) Series: LM317
1) Output Type: Adjustable
2) Output Voltage: 1.2 V to 37 V
3) Output Current: 1.5 A
4) Load Regulation: 0.5 %
5) Input Voltage MAX: 40 V
6) Line Regulation: 0.04 % / V
7) Maximum Operating Temperature: + 125 C
8) Mounting Style: Through Hole
9) Package / Case: TO-220
10) Input Voltage MIN: 4.2 V
11) Minimum Operating Temperature: 0 C
12) Number of Outputs: 1
13) Polarity: Positive
14) Series: LM317
| Part Number | LM317T |
|---|---|
| Manufacturer | Texas Instrument |
| Weight (KG) | 0.030000 |
