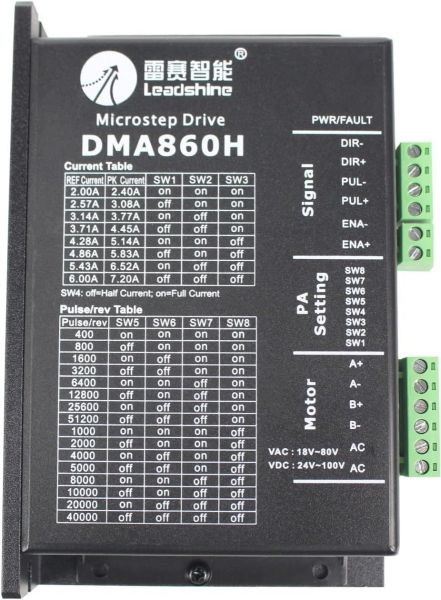

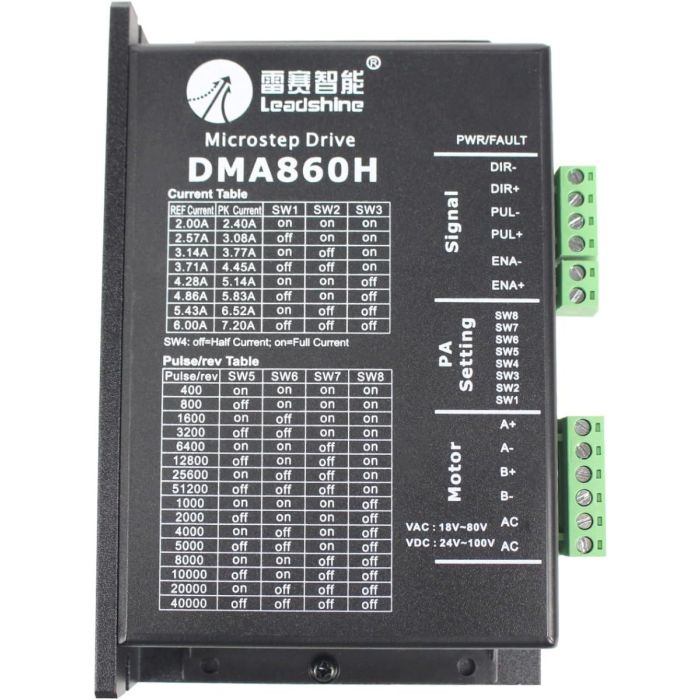

Leadshine: Stepper Motor Driver Controller for Nema23/Nema24/Nema34, 8-80VAC, 24-100VDC, 2.0A-7.2A, 200KHz- DMA860H

The DMA860H is a fully digital stepper drive developed with advanced DSP control algorithm based on the latest motion control technology. It has achieved a unique level of system smoothness, providing optimal torque and nulls mid-range instability. Its motor auto-identification and parameter auto-configuration feature offers quick setup to optimal modes with different motors. Compared with traditional analog drives, DMA860H can drive a stepper motor at much lower noise, lower heating, and smoother movement. Its unique features make DMA860H an ideal choice for high requirement applications.

Features:

• Anti-Resonance provides optimal torque and nulls mid-range instability

• Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors

• Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement

• 16 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000,5000, 8000, 10000, 20000, 40000

• Soft-start with no “jump” when powered on

• Input voltage 18-80VAC or 26-113VDC

• 8 selectable peak current including 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A

• Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input

• Automatic idle-current reduction

• Suitable for 2-phase and 4-phase motors

• Support PUL/DIR and CW/CCW modes

• Over-voltage, over-current protection



  User Manual:
  DMA860H User Manual

  Technical Data:

  Parameters	DMA860H
  	Min	Typical	Max	Unit
  Output current	1	-	7.2(Peak)	A
  Input voltage	18	48	80	VAC
  	26	68	113	VDC
  Logic signal current	7	10	16	mA
  Pulse input frequency	0	-	200	kHz
  Pulse width	2.5	-	-	uS
  Pulse voltage	-	5	-	VDC
  Isolation resistance	500			MΩ
