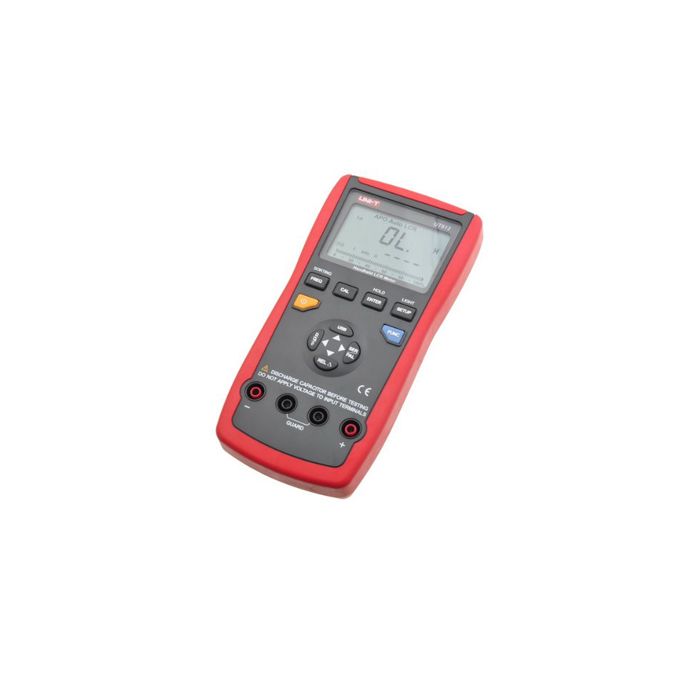

UNI-T (UT612) Digital Handheld LCR Meter With 2.8" LCD
- Buy 2 for PKR18,400.00 each and save 5%
- Buy 5 for PKR17,830.00 each and save 8%
- Buy 10 for PKR17,440.00 each and save 10%
The UNI-T UT612 is an LCR meter that is simple to use, and can measure inductance, capacitance and resistance with a high degree of accuracy across different ranges.This means measurement precision is maintained at high and low ends of the monitoring spectrum. In order to achieve total ease of use, the LCR meter is auto-ranging, minimizing the need for user configuration.
This LCR meter a good choice if you need to record readings for future reference. It has a quick-touch data hold function that stabilizes fluctuating readings on the screen for a few seconds, giving you the chance to write down measurements when appropriate. What’s more, the LCR meter can be used with circuits in both series and parallel. This makes it compatible with a wide range of electric systems.
The UNI-T UT612 LCR meter also features an LCD, backlit 2.8 inch screen, which has the capability to display two measurements simultaneously.
FEATURES:
- Auto-ranging
- Test multiple ranges across inductance, resistance and capacitance
- LCD display
- Data hold function allows you to save test data
- Powered by either 9V batteries or USB power
- Backlight for use in dark areas
- Series and parallel measurement models
- Connects to PC via USB
PHYSICAL DIAGRAM:
RELATED DOCUMENTS:
PACKAGE INCLUDES:
- 1 X UNI-T (UT612) Digital Handheld LCR Meter With 2.8" LCD
| Weight (KG) | 0.050000 |
|---|---|
| Manufacturer | UNI-T |
| Power | 9V Battery（6F22) or USB |
| Channel Amount | NA |
| DC Voltage (V) | NA |
| AC Voltage(V) | NA |
| AC Current (A) | NA |
| DC Current (A) | NA |
| Operating Voltage | 0.6Vrms |
| Inductance | 20uH～2000H |
| Capacitance (F) | 200p～20m |
| Resistance (Ω) | 20～200M |
| Range | NA |
| Target Distance | NA |
| Frequency | 100Hz/120Hz/1KHz/10KHz/100KHz |
| Test Parameters | L/C/R/DCR/Q/D/θ/ESR |
| Frequency Response | NA |
| Measurement Mode | Series/Parallel |
| Display Count | 20000 |
| Output Impedance | 120Ω |
| Duty Cycle | NA |
| Temperature Range (Min) | NA |
| Temperature Range (Max) | NA |
| USB/RS232 Interface | Yes |
| True RMS (TRMS) | No |
| Auto Range | Yes |
| Manual Range | Yes |
| Diode Test | No |
| Transistor Test | No |
| Continuity Test | No |
| Bluetooth Interface | No |
| Low Battery Indication | Yes |
| Relatively Measuring | No |
| Data Hold | Yes |
| Min-Max / Peak Hold | No |
| Auto Power-off | Yes |
| Overload Protection | No |
| Shockproof Protection | No |
| Backlight | Yes |
| "Analogue" Bargraph | No |
| Size (mm) | NA |
