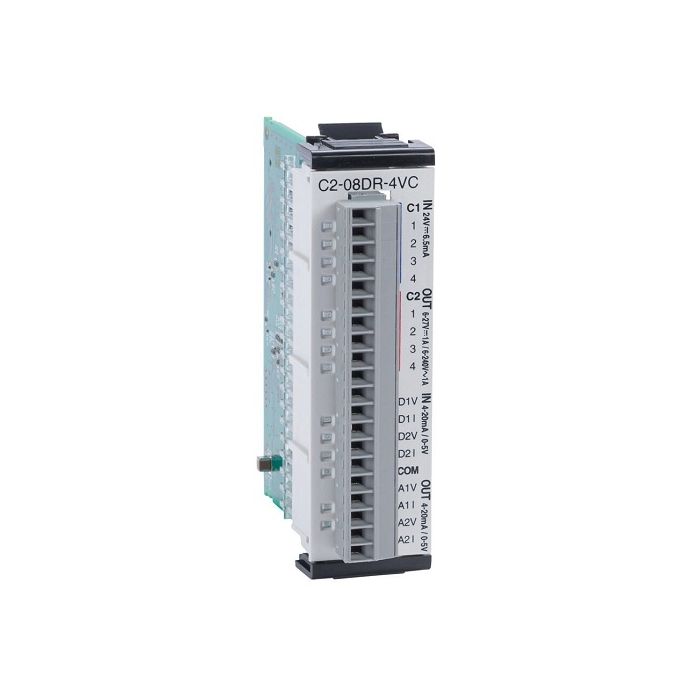

Koyo: CLICK PLUS Discrete/Analog Combo Module - C2-08DR-4VC

SKU
MD-01756
PKR41,500.00
Quantity: 0

CLICK PLUS discrete/analog combo module, Analog Input: 2-channel, current/voltage, Analog Output: 2-channel, current/voltage, Discrete Input: 4-point, sinking/sourcing, Discrete Output: 4-point, relay, (4) Form A (SPST) relays.

  • Buy 3 for PKR39,425.00 each and save 5%
  • Buy 10 for PKR38,180.00 each and save 8%

Specifications

Technical Attributes
Brand CLICK PLUS
Item Combo module
I/O Module Type Discrete/analog
Number of Analog Input Channels 2
Analog Input Signal Type Current/voltage
Number of Non-Isolated Analog Input Commons 1
Number of Points per Analog Input Common 2
Input Resolution 12-bit
Input Current Signal Range 4-20 mA
Input Voltage Signal Range 0-5 VDC
Number of Analog Output Channels 2
Analog Output Signal Type Current/voltage
Number of Non-Isolated Analog Output Commons 1
Number of Points per Analog Output Common 2
Output Resolution 12-bit
Output Current Signal Range 4-20 mA
Output Voltage Signal Range 0-5 VDC
Number of Discrete Input Points 4
Nominal Input Voltage 24 VDC
Discrete Input Type Sinking/sourcing
Number of Isolated Discrete Input Commons 1
Number of Points per Discrete Input Common 4
Number of Discrete Output Points 4
Nominal Output Voltage 6-240 VAC/6-27 VDC
Discrete Output Type Relay
Relay Configuration (4) Form A (SPST) relays
Number of Isolated Discrete Output Commons 1
Number of Points per Discrete Output Common 4
Load Current 1A/point
Number of High-Speed Capable Input Points 4
High-Speed Counter(s)
  • up to (4) up counters
  • up to (4) down counters
  • up to (2) up/down counters
  • up to (2) pulse/direction (bi-directional) counters
  • up to (2) quadrature (A and B) counters
  • up to (1) quadrature (A and B with Z) counter
Interval Measurement
  • up to (4) single input (edge) timers
  • up to (2) dual input (dual edge) timers
Duration Measurement
  • up to (4) single input (edge) timers
Frequency Measurement
  • up to (4) single input up counters
  • up to (2) quadrature input (A and B) counters
Interrupt(s)
  • up to (4) input interrupts
  • up to (4) timer interrupts
Table-Driven Input(s)
  • up to (4) preset tables
Fuse Type User-supplied external fuse
Includes Removable terminal block
Programming Software CLICK programming software v3.0 or later and CLICK CPU firmware v3.0 or later

What's in the Box

1x CLICK PLUS Series Slot I/O Module
1x 20 position terminal block~attached to module



Part Number C2-08DR-4VC
Manufacturer Koyo Electronics Industries
Weight (KG) 0.200000
