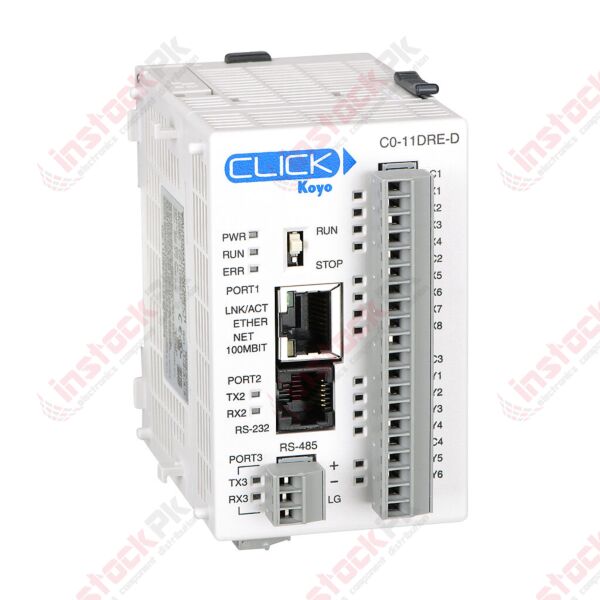

Koyo: CLICK Ethernet Standard PLC, Discrete Input: 8-point - C0-11DRE-D
SKU
MD-01632
Category: Programmable Logic Array PLC
CLICK Ethernet Standard PLC, 24 VDC required, Ethernet and serial ports, Discrete Input: 8-point, DC, Discrete Output: 6-point, relay.
| Technical Attributes | |
|---|---|
| Brand | CLICK |
| Item | PLC |
| Series | Ethernet Standard |
| Ladder Memory | 8k steps |
| User Data Memory | 16 KB |
| Programming Language | Ladder |
| Programming Software | CLICK programming software v2.00 or later and CLICK CPU firmware v2.00 or later |
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| Real Time Clock/Calendar | Yes |
| Retentive Memory | Yes |
| Battery Backup | Yes |
| Maximum Expansion Modules Allowed | 8 |
| External Power Requirement | 24 VDC |
| Number of Discrete Input Points | 8 |
| Nominal Input Voltage | 24 VDC |
| Voltage Type | DC |
| Discrete Input Type | Sinking/sourcing |
| Number of Isolated Discrete Input Commons | 2 |
| Number of Points per Discrete Input Common | 4 |
| Number of Discrete Output Points | 6 |
| Nominal Output Voltage | 6-240 VAC/6-27 VDC |
| Discrete Output Type | Relay |
| Relay Configuration | (6) Form A (SPST) relays |
| Load Current | 1A/point |
| Number of Isolated Discrete Output Commons | 2 |
| Number of Points per Discrete Output Common | 4/2 |
| Maximum Number of PID Loops | 8 |
| Number of High-Speed Capable Input Points | 8 |
| High-Speed Counter(s) |
|
| Interval Measurement |
|
| Duration Measurement |
|
| Frequency Measurement |
|
| Interrupt(s) |
|
| Table-Driven Input(s) |
|
| Includes | Removable terminal block |
| Additional Information | Purchase D2-BAT-1 backup battery separately |
| Part Number | C0-11DRE-D |
|---|---|
| Manufacturer | Koyo Electronics Industries |
| Weight (KG) | 0.200000 |
| Product Availability | Available on Demand |
