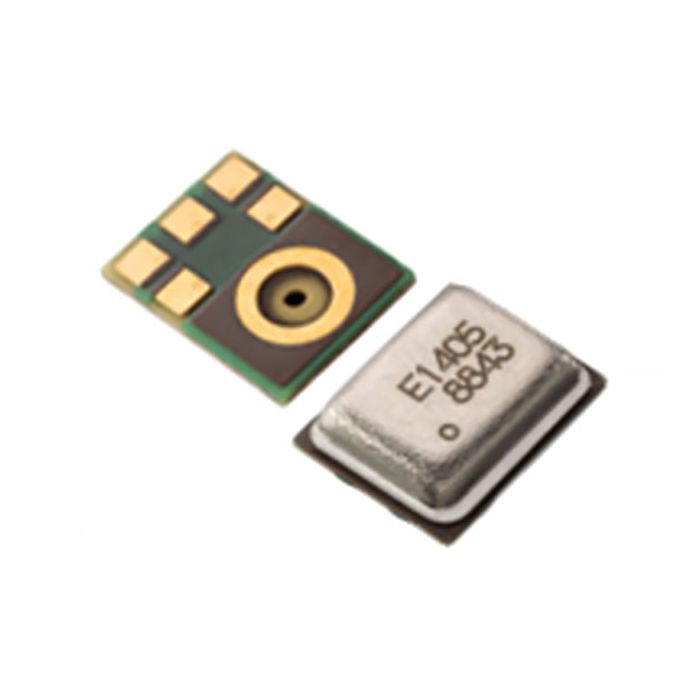

Knowles: Omni Directional Digital I2S MEMS Microphone - SPH0645LM4H-B

Knowles SP Series SiSonic™ MEMS Silicon Microphones are high-performance, low power, top port silicon, digital miniature microphones. These digital microphones use SiSonic MEMS technology and consist of an acoustic sensor, a low noise input buffer, and either a sigma-delta modulator or output amplifier. Design variables include ever-smaller sizes, lower profiles and mounting options, increased output capacities, and new digital audio options that eliminate analog noise. Suitable applications include cellphones, smart phones, laptop computers, sensors, digital still cameras, portable music recorders, and other portable electronic devices where wideband audio performance and RF immunity are needed.

Sensitivity:	- 26 dB
Tolerance:	1 dB
SNR - Signal to Noise Ratio:	65 dB
Impedance:	-
Frequency Range:	10 Hz to 10 kHz
Operating Supply Current:	600 uA
Operating Supply Voltage:	3.6 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 100 C
Output Type:	Digital
Port Type:	Bottom
Length:	3.5 mm
Width:	2.65 mm
Depth:	1.08 mm
Brand:	Knowles
Directional Properties:	Omnidirectional
Mounting Style:	SMD/SMT
Product Type:	MEMS Microphones
Shape:	Rectangular
Sound Pressure Level:	120 dB
