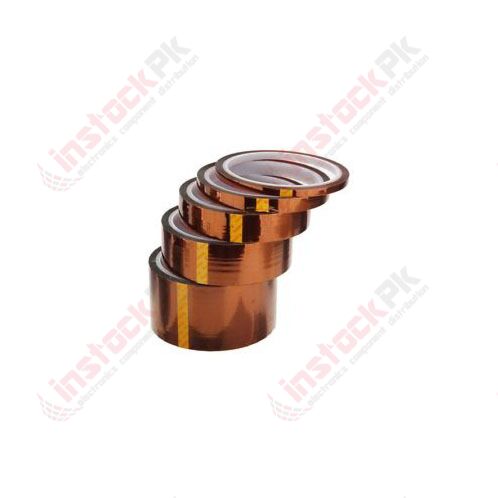

Kapton Polyimide Tape For High Temperature Resistant 30Meter/100Meter, 20mm/30mm/40mm/50mm
SKU
MD-00122
As low as
PKR750.00
was
PKR860.00
Quantity: 55
High Temperature Heat Resistant Polyimide Kapton Tape is available in length of 30Meter/100Meter where as width is 20mm/30mm/40mm/50mm
Category: Parts & Accessories
Polyimide tape, also known as KAPTON tape, commonly known as high temperature tape, finger tape, is a polyimide film as a base material, the use of imported silicone pressure sensitive adhesive.
Specifications:
- Substrate (Backing): 0.025MM polyimide film
- Adhesive ( Coefficient of the Tape ): Silicone
- Tensile strength ( TensileStrength ): ≥ 140 N / 25mm
- Elongation at break ( Elongation ): ≥ 40 %
- Breakdown strength ( Breakdown strength ) : ≥ 150 N / 25mm
- Withstand voltage ( Withstand Voltage ): 5 KV
- 180 0 peel force ( Adhesion ) : 5-6 N / 25mm
Applications:
- PCB board finger temperature spray masking
- Circuit board solder masking
- High temperature insulation transformer coil banding
- Phone lithium battery manufacturing strapping
- Heater fixing
- Motor insulation
| Part Number | NA |
|---|---|
| Manufacturer | Made in China |
| Weight (KG) | 0.200000 |
| Packing Unit | 1 Piece |
| Memory | NA |
| Product Availability | In Stock |
