IR Thermometer Evaluation Board MLX90614
PKR 8,550.00
SKU
MD-00627

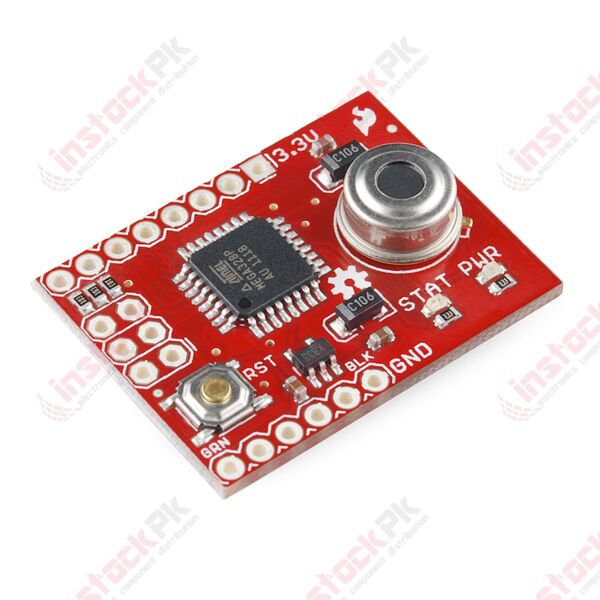

IR Thermometer Evaluation Board MLX90614
This is an evaluation board for the MLX90614 IR Thermometer. The sensor is connected to an ATmega328 running at 3.3V with a STK500 (Arduino) 8MHz bootloader. Code can be loaded through the FTDI basic interface and the Arduino environment.The MLX9061 sensor is a high precision, small size, single zone IR thermometer with an optional SMBus (two-wire) or PWM interface. The ATMega328 comes with demo code that gives a temperature readout in degrees F at 38400bps. You can use a 3.3V FTDI Basic to connect to the board.
FEATURES:
- ATMega328 w/ 8MHz STK500 (Arduino) bootloader.
- MLX90614 IR sensor, 3V version
- Power and status LEDs
RELATED DOCUMENTS:
RELATED VIDEO:
PACKAGE INCLUDES:
- 1 X IR Thermometer Evaluation Board MLX90614
| Part Number | NA |
|---|---|
| Weight (KG) | 0.004000 |
| Manufacturer | Sparkfun |
| Product Availability | In Stock |
| Voltage (Min) | 3.3V |
| Voltage (Max) | 3.3V |
| Output Voltage | NA |
| Power | NA |
| Current (A) | NA |
| Frequency | NA |
| Load Cell (kg) | NA |
| Output Type | Digital |
| Range | NA |
| Temperature Range (Min) | -25°C |
| Operating System | NA |
| Resistance Value (Ohm) | NA |
| Baud Rate | NA |
| Interface | NA |
| Num of Pin's | NA |
| Diameter | NA |
| Size (mm) | NA |
