IP-Com: 8-Port Layer3 Gigabit Managed PoE Switch - G5310P-8-150W
SKU
MD-02170
Category: Wireless & Networking Module

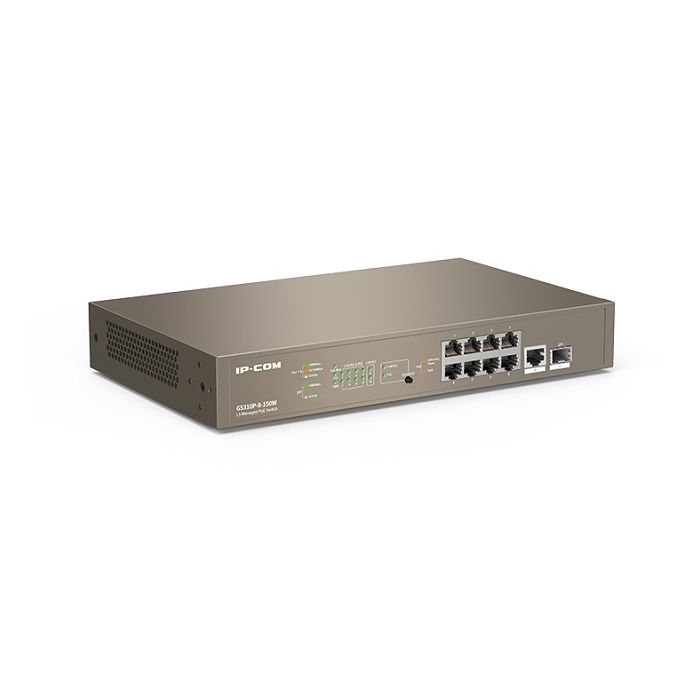

G5310P-8-150W is an IP-COM Layer-3 managed PoE switch. To meet the demand of high-performance access, the switch provides 9 10/100/1000 Mbps Base-T Ethernet ports and 1 separate 1000 Mbps Base-X SFP ports, and a PoE power of up to 370 W. With an innovative hardware structure and software platform, it features a powerful processing capacity and complete security protection mechanism, making management and maintenance easy and simple, fully meeting the demands of high-density user access and high-performance aggregation, ideal for the aggregation layer or access layer of such medium to large networks as enterprises and campuses.
Features:
- 9 x 10/100/1000 Base-T Ethernet ports , 1 separate 1000 Base-X SFP ports
- 16 K MAC address table and MAC address auto-learning
- Maximum PoE output power of a single port: 30 W, maximum PoE output power of the whole switch: 130 W
- Supports abundant services, such as static routing, VLAN, IGMP, QoS, ACL, DHCP
- Built-in 6 kV professional lightning protection power, 13 inch/1 u standard desktop and rack-mounted design
Specifications |
|
HARDWARE FEATURES |
|
Network standards | IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3z、IEEE802.3x、IEEE802.3af/at、IEEE802.1p、IEEE802.1q、IEEE802.1w、IEEE802.1d、IEEE802.1s |
LED indicators | One Link/Act or PoE LED indicator for each port One Link/One Link/Act mode converting LED indicator for each device One PoE mode converting LED indicator for each device One PoE Max LED indicator for each device One Power LED indicator for each device One SYS LED indicator for each device |
Fixed ports | 9 x 10/100/1000 Base-T Ethernet ports 1 x 1000 Base-X SFP port |
Port lightning protection | ≥6 kV |
Forwarding mode | Store-and-forward |
MAC address table | 16K |
PoE power supply | Ports 1 to 8 support IEEE 802.3af/at standard PoE power supply 1 2 4 5 +, and 3 6 7 8 - |
Input voltage | AC 100-240V~ 50/60Hz |
Dimensions ( W x D x H ) | 294 mm x 179.6 mm x 44 mm |
Whole switch consumption | Whole switch consumption: <150W. Maximum PoE output power: 130 W |
Operating environment | Operating temperature: 0°C - 40°C Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%)RH, non-condensing, Storage humidity: (5% - 90%)RH, non-condensing |
SOFTWARE FEATURES |
|
PoE management | Port PoE con guration and power supply with priority PoE over-temperature protection PoE scheduled management Supports intelligent and graphical management and PoE-powered device detection (port status, power assignment and PoE-powered device status) |
Security features | ARP receiving limit Unknown MAC address discard DoS attack defense 802.1x security authentication |
VLAN | IEEE 802.1Q VLAN VLAN Layer-3 interfaces Supports three port modes: Access, Trunk and Hybrid |
DHCP | DHCP Relay DHCP Snooping Supports Option 82 policy con guration |
L3 Routing | VLAN-based routing IPv4 static routing Supports static ARP adding/deleting Supports ARP aging time con guration |
Port aggregation | Static aggregation LACP dynamic aggregation |
Spanning tree | IEEE 802.1d STP (Spanning Tree Protocol) IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) Supports edge port Supports BPDU statistics |
Multicast | IGMP Snooping V1/V2/V3 Supports port fast leave |
Port Mirroring | Supports N: 1 port mirroring |
QoS | SP (Strict Priority) SWRR (Simple Weighted Round Robin) WRR (Weighted Round Robin) Supports 802.1p port trust mode Supports DSCP port trust mode Supports a maximum of 8 queue service quality mapping) |
ACL | Supports MAC ACL and IP ACL |
Loading and upgrade | Supports FTP/TFTP/HTTP upgrade Supports con guration import and export |
Management and maintenance | Telnet, Console SNMP V1/V2/V3 WEB management and maintenance Ping/Tracert/Connection Detection Local visualization management |
Certi cates | CCC、FCC、CE、RoHS |
Part Number | G5310P-8-150W |
---|---|
Manufacturer | IP-COM Networks Co. Ltd. |
Weight (KG) | 1.200000 |
Number of Channels | 8 |
Packing Unit | 1 Piece |
