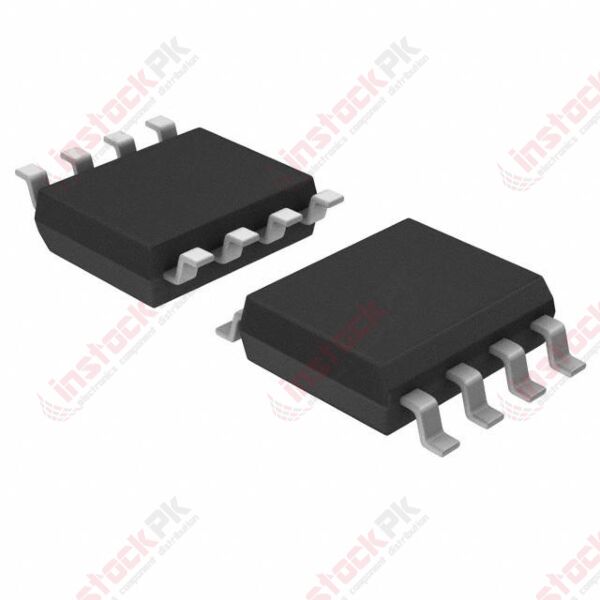

Intersil - Dual MOSFET Driver IC SOIC-8 EL7242CSZ
SKU
MD-01237
PKRĀ 680.00
The EL7242CSZ is a dual input 2-channel high speed Power MOSFET Driver achieves the same excellent switching performance of the EL7212 family while ...
š¦ Pre-Order Queue:
0 Units
ā Available on Backorder (In 15-30 business days)
- Buy 3 for PKRĀ 640.00 each and save 6%
- Buy 10 for PKRĀ 610.00 each and save 10%
- Buy 25 for PKRĀ 580.00 each and save 15%
Category: Integrated Circuit
| Product Attributes | Select All |
| Categories | Integrated Circuits (ICs) |
|---|---|
| PMIC - Gate Drivers | |
| Manufacturer | Renesas Electronics America Inc. |
| Series | - |
Packaging  |
Cut Tape (CT) |
| Part Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5 V ~ 16 V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Input Type | Inverting, Non-Inverting |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Part Number | EL7242 |
| Part Number | EL7242CSZ |
|---|---|
| Weight (KG) | 0.001000 |
| Manufacturer | Intersil |
| Voltage (Min) | NA |
| Voltage (Max) | NA |
| Power | NA |
| Temperature Range (Min) | NA |
| Temperature Range (Max) | NA |
| Memory | NA |
| Num of Pin's | 8 |
| SMD_Package | SOIC-8 |
