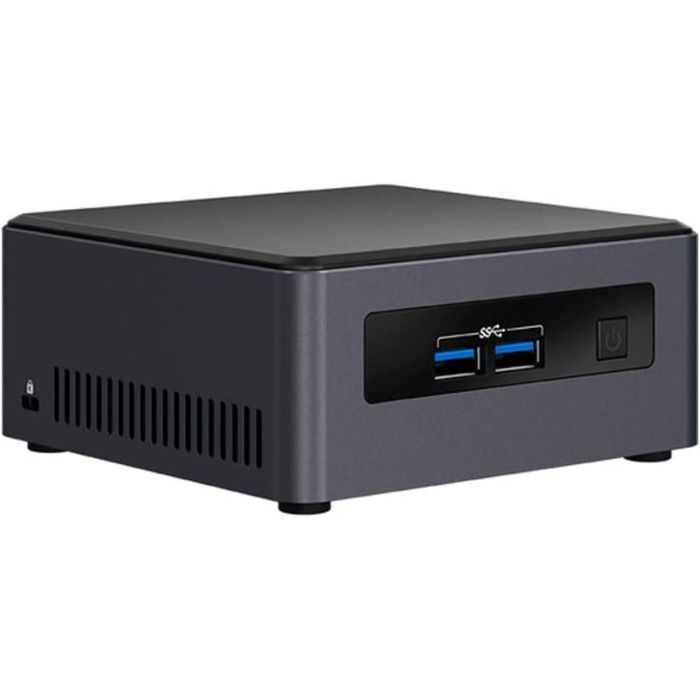

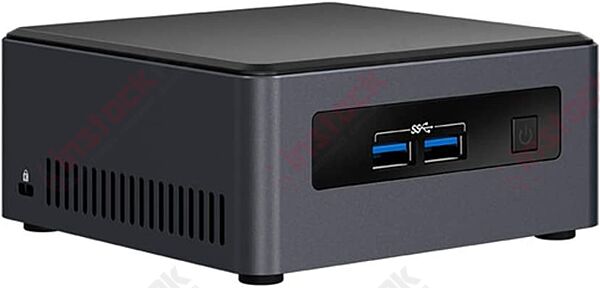

Intel: Mini Desktop Computer Core i7 8650U Quad-Core 1.9GHz - NUC Kit - NUC7i7DNHE
SKU
MD-01912
Category: Single Board Computer
Features:
- Powerful Mini PC - the Intel NUC UCFF is a powerful and scalable 4x4-inch mini PC with eye-catching entertainment, gaming, and productivity features; wireless keyboard and mouse is included
- Get faster application launches, shorter boot times and more responsive browsing with 32GB DDR4 memory and 1TB NVME solid state drive
- Amazing performance and 4K visuals with Intel Core i7-8650U quad-core processor, up to 4.2GHz turbo and integrated Intel UHD Graphics 620
- Work more effectively, collaboratively and creatively with the Windows 10 Professional operating system
- Desktop chassis comes in a sealed box; Hardware upgrades (if applicable) are included, not installed
Essentials
- Product Collection Intel® NUC Kit with 8th Generation Intel® Core™ Processors
- Code Name Products formerly Dawson Canyon
- Status Launched
- Launch Date Q1'18
- Supported Operating Systems Windows 10, 64-bit*, Windows 10 IoT Enterprise*, Ubuntu 16.04*
- Board Number NUC7i7DNB
- Board Form Factor UCFF (4" x 4")
- Socket Soldered-down BGA
- Internal Drive Form Factor M.2 and 2.5" Drive
- # of Internal Drives Supported 2
- Lithography 14 nm
- TDP 15 W
- DC Input Voltage Supported 12-24 VDC
- Processor Included Intel® Core™ i7-8650U Processor (8M Cache, up to 4.20 GHz)
- Intel vPro® Platform Eligibility ‡ Yes
- Total Cores 4
- Total Threads 8
- Processor Base Frequency 1.90 GHz
- Max Turbo Frequency 4.20 GHz
Supplemental Information
- Embedded Options Available Yes
- Description 8th Gen Commercial Intel® NUC
Memory & Storage
- Max Memory Size (dependent on memory type) 32 GB (Not Included)
- Memory Types DDR4-2400 1.2V SO-DIMM
- Max # of Memory Channels 2
- Max # of DIMMs 2
- ECC Memory Supported ‡ No
Processor Graphics
- Integrated Graphics ‡ Yes
- Graphics Output Dual HDMI 2.0a, 4-lane eDP 1.4
- # of Displays Supported ‡ 2
Expansion Options
- PCI Express Revision Gen 3
- PCI Express Configurations ‡ PCIe x4: M.2 22x80 (key M) slot PCIe x1: M.2 22x30 (key E) slot
- M.2 Card Slot (wireless) 22x30 (key E) slot
- M.2 Card Slot (storage) 22x80 (key M) slot
I/O Specifications
- # of USB Ports 4
- USB Configuration 2x front and 2x rear USB 3.0; 1x USB 3.0 and 2x USB 2.0 via internal headers
- USB Revision 2.0, 3.0
- USB 2.0 Configuration (External + Internal) 0 + 2
- USB 3.0 Configuration (External + Internal) 2B 2F +1
- Total # of SATA Ports 2
- Max # of SATA 6.0 Gb/s Ports 2
- RAID Configuration 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)
- Serial Port via Internal Header Yes
- Integrated LAN Intel® i219-LM 10/100/1000 Mbps Ethernet
- Integrated Wireless‡ Intel® Wireless-AC 8265 vPro (IEEE 802.11ac 2x2)
- Integrated Bluetooth Yes
- Additional Headers Front Panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); HDMI_CEC; Internal 2x2 power connector
Package Specifications
- Chassis Dimensions 115 x 111 x 52 mm
Advanced Technologies
- Intel® Optane™ Memory Supported ‡ Yes
- Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
- Intel vPro® Platform Eligibility ‡ Yes
- Intel® ME Firmware Version v11.8
- TPM Yes
- TPM Version 2.0
- Intel® Rapid Storage Technology Yes
- Intel® Virtualization Technology (VT-x) ‡ Yes
- Intel® Platform Trust Technology (Intel® PTT) No
Security & Reliability
- Intel® AES New Instructions Yes
- Intel® Trusted Execution Technology ‡ Yes
| Part Number | NUC7i7DNHE |
|---|---|
| Manufacturer | Intel® |
| Weight (KG) | 1.300000 |
| Packing Unit | 1 Piece |
| Memory | NA |
| Product Availability | In Stock |
