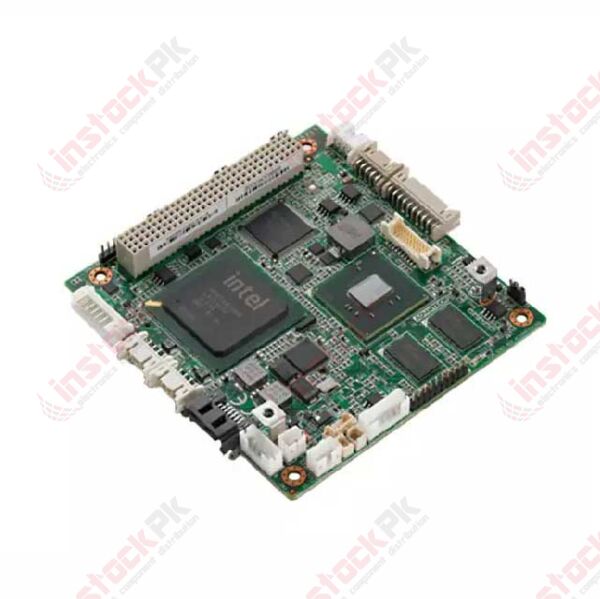

Intel Dual Core Atom D525 PCI-104 Embedded Board PCM-3363D-1GS8A1E

PCM-3363 also has an enhanced reliable hardware design to guarantee 100% bootups, even when enduring low temperatures for extended periods of time, even down to -40° C. It also ensures that abnormal transient power fluctuations won’t cause a system to freeze, making it suitable for un-manned and outdoor applications which occasionally experience unstable mains power.

FEATURES:

1. Intel Atom D525 Dual Core 1.8 GHz processor. Performance of the D525 is almost twice that of the N455
2. Onboard 1GB DDR3 800 MHz Memory
3. 24-bit LVDS support and onboard 1 GB DDR3 800 MHz memory
4. 4 x USB, 2 x RS-232 ,1 x RS-485
5. HALT tested locking type connector for high vibration environments
6. Standard 96 x 90 mm PC/104 dimensions
7. Supports Lite iManager and embedded software APIs and Utilities

SPECIFICATIONS:

1. Manufacturer:Advantech
2. RoHS:RoHS Compliant Details
3. Processor Brand: Intel
4. Processor Type: Intel Atom D525
5. Frequency: 1.8 GHz
6. Memory Size: 1 GB
7. Interface Type: Audio, Ethernet, SATA, Serial, USB
8. Operating Supply Voltage: 5 V
9. Maximum Operating Temperature: + 60 C
10. Dimensions: 96 mm x 90 mm
11. Cache Memory: 1 MB
12. Chipsets: ICH8M
13. Core: Intel Atom D525
14. Function: Intel Atom D525 PCI-104 SBC, VGA, LVDS, Ethernet, USB, COM, SATA, onboard memory
15. Memory Type:DDR3
16. Minimum Operating Temperature: 0 C
17. Power Consumption:  9.25 W
18. Processor Series: Intel Atom D525

RELATED DOCUMENTS:

1. Datasheet.

PACKAGE INCLUDES:

1. 1 X Intel Dual Core Atom D525 PCI-104 Embedded Board PCM-3363D-1GS8A1E
